JUICE BOOSTER 2

Basic Set Switzerland with Type 1 plug

€999 EUR

Tax included Shipping calculated at checkout.

24-month warranty

Swiss design and development

Directly from the manufacturer

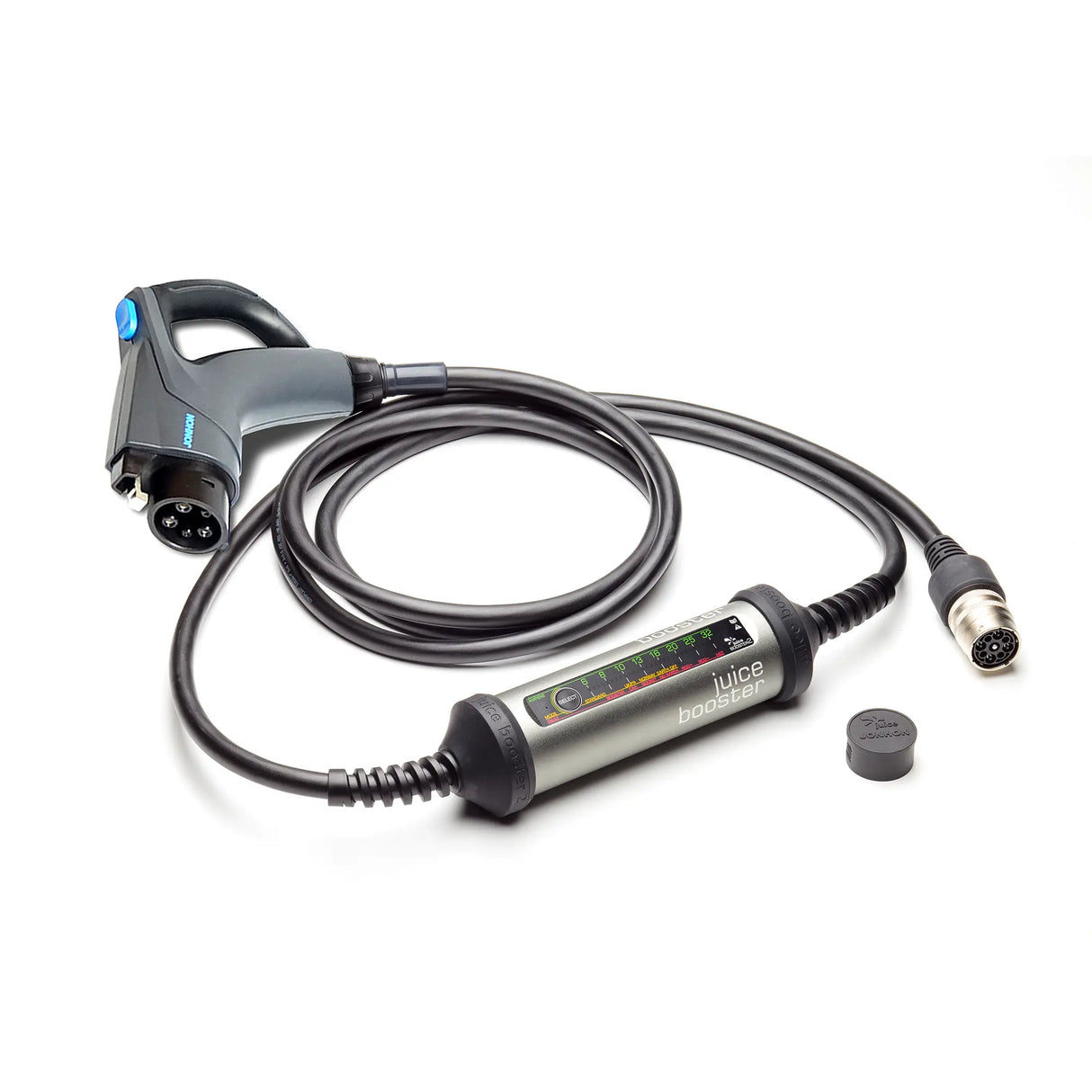

The JUICE BOOSTER 2 is a 3-in-1 charging solution for electric vehicles with a Type 1 connection, usable as a wall box, mobile charger or charging cable. It offers the highest level of safety (IP67/IK10) and residual current protection, prevents incorrect operation and enables fast charging at almost any socket worldwide.

specifications

3-in-1: mobile charging station, wallbox and Mode 3 charging cable in one device

single- to three-phase charging with 1.4 to 22 kilowatts and up to 32 amps

very light, weighs 1 kg

completely waterproof and dustproof (IP67)

impact-resistant (IK10) and drive-over-proof (up to 3 tons wheel load)

usable in the temperature range from -30 °C to +50 °C

5 m cable length can be extended by 25 m with extensions

optimal charging performance through automatic adapter recognition

over 30 different adapters for flexible charging worldwide

detailed error detection

powered by JUICE JET ENGINE

compatible with all electric cars with Type 2 or Type 1 charging socket

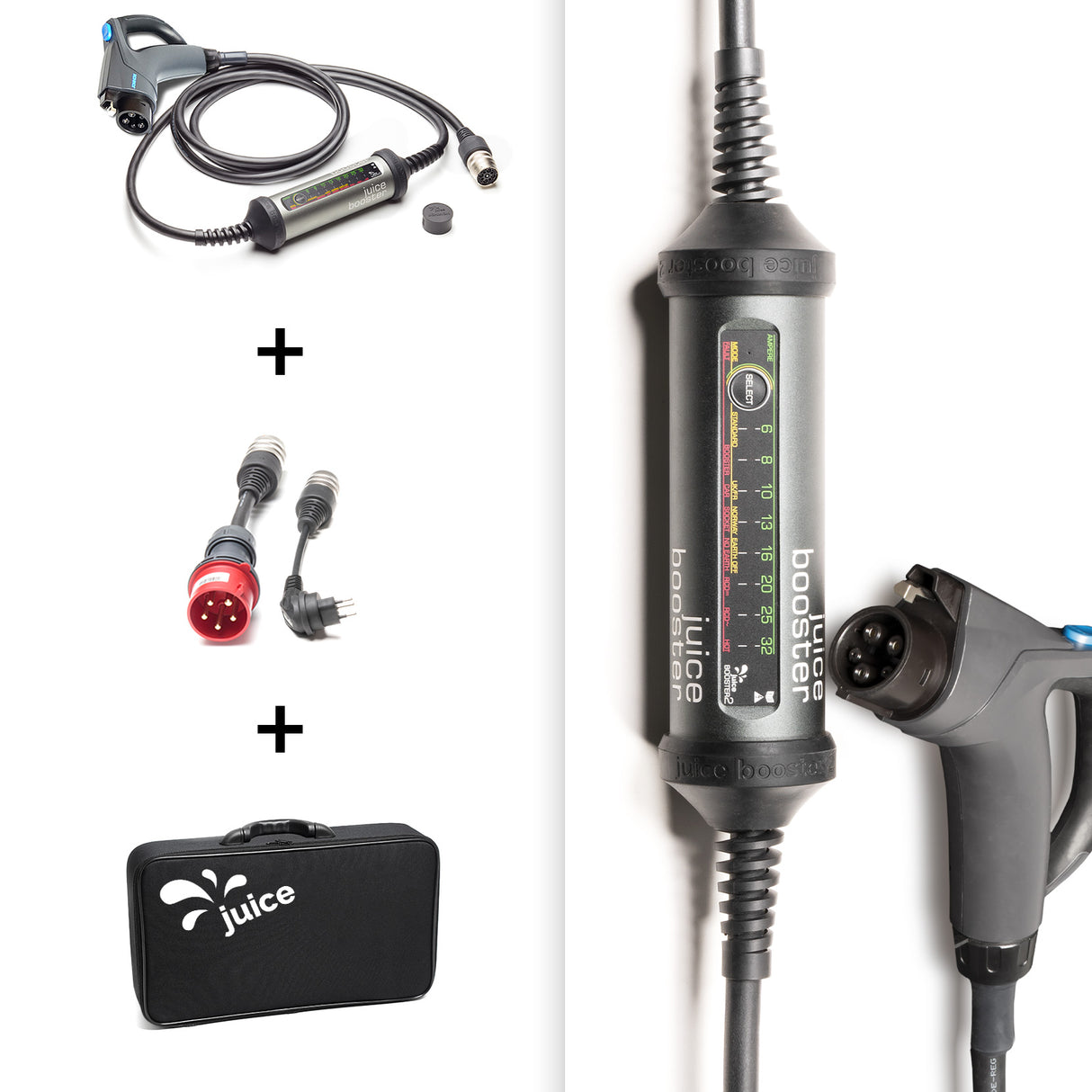

scope of delivery

1x JUICE BOOSTER 2 with Type 1 plug
1x adapter CEE32 / 400V
1x adapter T13 (CH) with temperature sensor
1x carrying bag

Technical data

Dimensions:Diameter: 70 mm, Length: 225 mm

Weight:1.0 kg without cable, 4.1 kg with cable and plug

Perfomance:1.4 kW – 22 kW AC

Rated current:6 A to 32 A

Mains voltage:230V (1-phase) / 400V (3-phase)

Material, color:anodized aluminum, anthracite

Operating temperature:-30 °C to +50 °C

CE conformity:IEC 62752, 62196, 61851-1, Mode 2/3, EMC, RoHS

Protection class – FI – Safety:IP67 – RCD DC 6 mA, AC 30 mA – protective conductor, temperature monitoring

Coupling on the vehicle side:Type 1 (SAE J1772)

Cable length:3.1 m

Downloads and Manual

Product Sheet Quick Start Guide Manual TÜV CE Certification UKCA

SKU: EL-JB2T1E1

Herstellerinformationen

Basic Set Schweiz mit Typ-1-Stecker - Juice Technology AG

Basic Set Switzerland with Type 1 plug

€999 EUR

The JUICE BOOSTER 2 is a 3-in-1 charging solution for electric vehicles with a Type 1 connection, usable as a wall box, mobile charger or charging cable. It offers the highest level of safety (IP67/IK10) and residual current protection, prevents incorrect operation and enables fast charging at almost any socket worldwide.
