JUICE ULTRA 2

up to 500 kW – stationary, fast charging (DC)

Swiss quality

JUICE ULTRA 2 - Juice Technology AG

High Power Charging for every location

The JUICE ULTRA 2 is a flexible DC fast charging station for electric cars and electric commercial vehicles.
The high-performance charger (HPC) can be modularly equipped with up to 500 kW charging power.

JUICE ULTRA 2 - Juice Technology AG

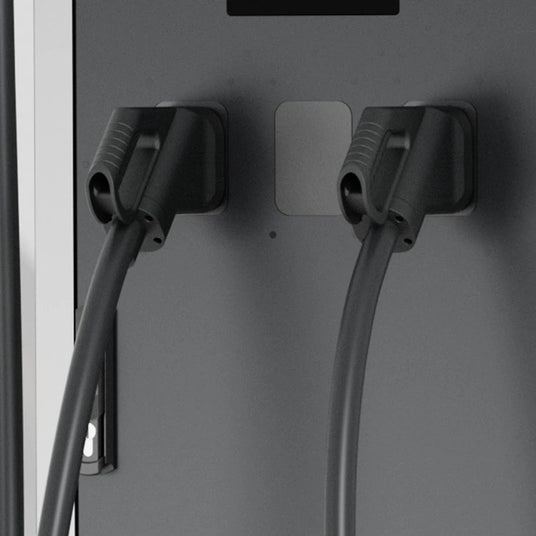

Maintenance-free cooling system

The DC charging cable with a large cross-section has a low resistance and does not require liquid cooling. Maintenance-free air cooling is sufficient for flawless operation without loss of performance. There is no additional energy consumption due to an active cooling system. Since no coolant is used, there are also no ecological restrictions.

JUICE ULTRA 2 - Juice Technology AG

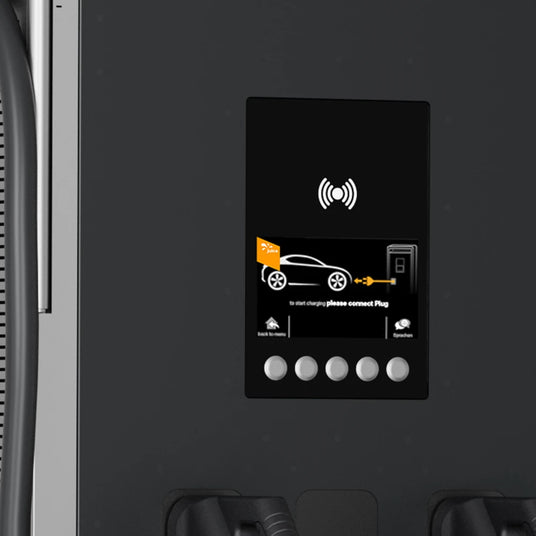

Comfortable operation

The razor-sharp 7'' color display ensures convenient operation. Activation is carried out either via RFID, Plug and Charge (according to ISO 15118) or optionally with an NFC terminal for contactless payment by debit/credit card as well as via mobile payment methods.

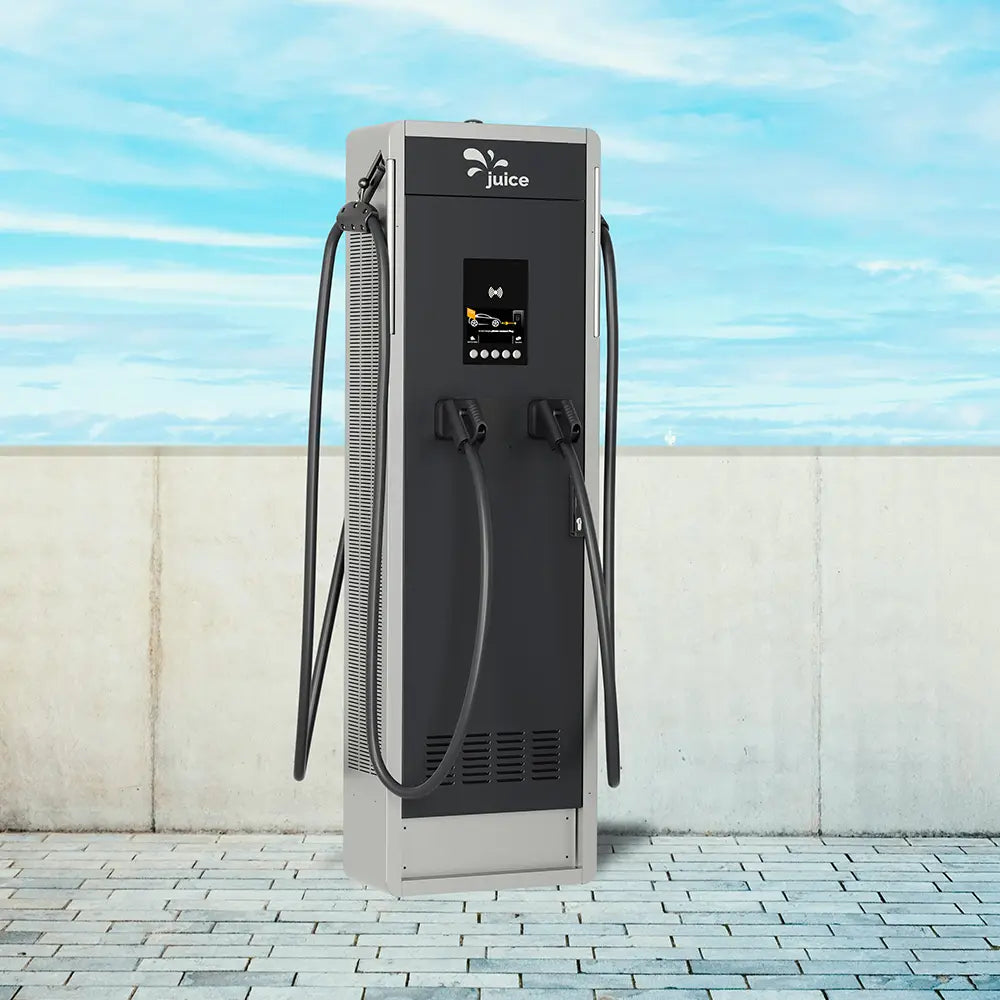

Inquire now

  • JUICE ULTRA 2 - Juice Technology AG JUICE ULTRA 2 - Juice Technology AG

    JUICE ULTRA 2

    JUICE ULTRA 2

    From €85.000 EUR
JUICE ULTRA 2 - Juice Technology AG

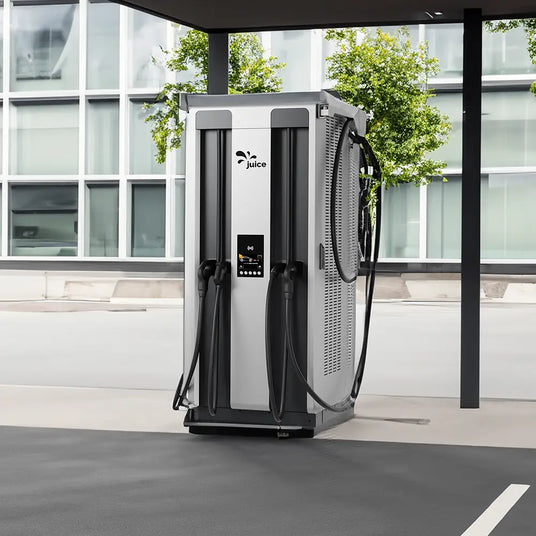

Conclusion

The JUICE ULTRA 2 impresses in all variants with its reliable functionality, easy installation and low maintenance. It supports all common fast charging standards of the automobile manufacturers, so that not only electric cars, but also electric commercial vehicles can be quickly supplied with the energy they need. Air-cooled DC charging cables with minimal heat generation ensure maximum efficiency and low operating costs. This shows that DC chargers are in no way inferior to AC chargers in terms of their cost-benefit ratio.

Das flexibel erweiterbare HPC-System
super-fast charging at 2 DC charging points (CCS2) simultaneously with up to 500 kW (2 × 250 kW)
Dynamic load management monitors and controls energy distribution in real time.
additional AC socket for charging a third vehicle with up to 22 kW
An easy-to-read 7” screen ensures excellent usability.
vandal-proof (IK10) and protected against dust and splash water (IP54)
DC safety: under-/overvoltage protection, overcurrent protection, short-circuit protection, grounding protection, insulation monitoring, ground conductor monitoring
usable in the temperature range from -20 °C to +45 °C
AC safety: residual current protection (type B), overcurrent protection, earth conductor monitoring
RFID reader for activation with charging cards (compatible with all common providers, including eCarUp, Move, swisscharge)
OCPP, ISO 15118 (Plug and Charge), Ethernet, GPRS, UMTS and LTE

Technical data

Dimensions slim (width x height x depth):853 x 2079 x 840 mm
Dimensions large (width x height x depth):590 x 1900 x 300 mm
Dimensions hub (width x height x depth):590 x 1900 x 300 mm

Input current (AC mains connection):3 x 400 V (± 10%) / 45-65 Hz or 50/60 Hz

AC input current:176A (DC only), 200A (DC & AC), 585A, 488A or 585A

DC output current:1 x 275 A or 2 x 160 A, 1 x 500 A or 2 x 480 A

DC output voltage:150–920 V

DC charging power (max.):100 kW, 500 kW

AC charging power (max.):22 kW

Efficiency:94.5% (at 50% < performance)

Protection class:IP54 and IK10

Load shedding:via potential-free contact

Conformity – EMC:EN 61851-1, -22, -23; EN 62479; EN 55011 + A1 – EN 61000-6-1, -2, -3, -4

Operating temperature:-20 °C to +45 °C

RFID system:ISO/IEC 14443A, ISO7816, MIFARE Ultralight®, NTAG203, MIFARE Mini, MIFARE Classic® 1K, MIFARE Classic® 4K, FM11RF08

Communication:OCPP 1.5, OCPP 1.6, OCPP 2.0 (ready), JSON / SOAP, Ethernet port, GPRS, UMTS, LTE; DIN 70121, ISO 15118

Couplings:2 x CCS2 (IEC 62196-3), on request also with CCS1 or CHAdeMO and additional AC Type 2 (socket)

Cable management:7.1 m with cable retrieval system, 5.8 m with cable arm, 7.1 m with cable retrieval system

Material – Color:robust full metal housing – interior: anthracite, frame: light grey; cable black

Downloads and Manual
Product Sheet Manual
JUICE ULTRA 2 - Juice Technology AG

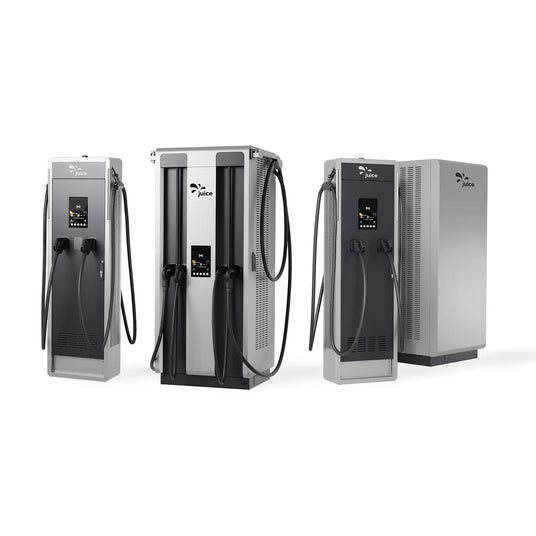

Discover the JUICE ULTRA 2

This is the powerful DC charger from Switzerland. It is compact, easy to install and low-maintenance. Whether slim, large or hub - there is a suitable model variant for every location.
