JUICE BOOSTER 2

Basic Set with Type 1 plug

CHF 999.00
Tax included Shipping calculated at checkout.

24-month warranty

Swiss design and development

Directly from the manufacturer

The JUICE BOOSTER 2 is a 3-in-1 charging solution for electric vehicles with a Type 1 connection, usable as a wall box, mobile charger or charging cable. It offers the highest level of safety (IP67/IK10) and residual current protection, prevents incorrect operation and enables fast charging at almost any socket worldwide.

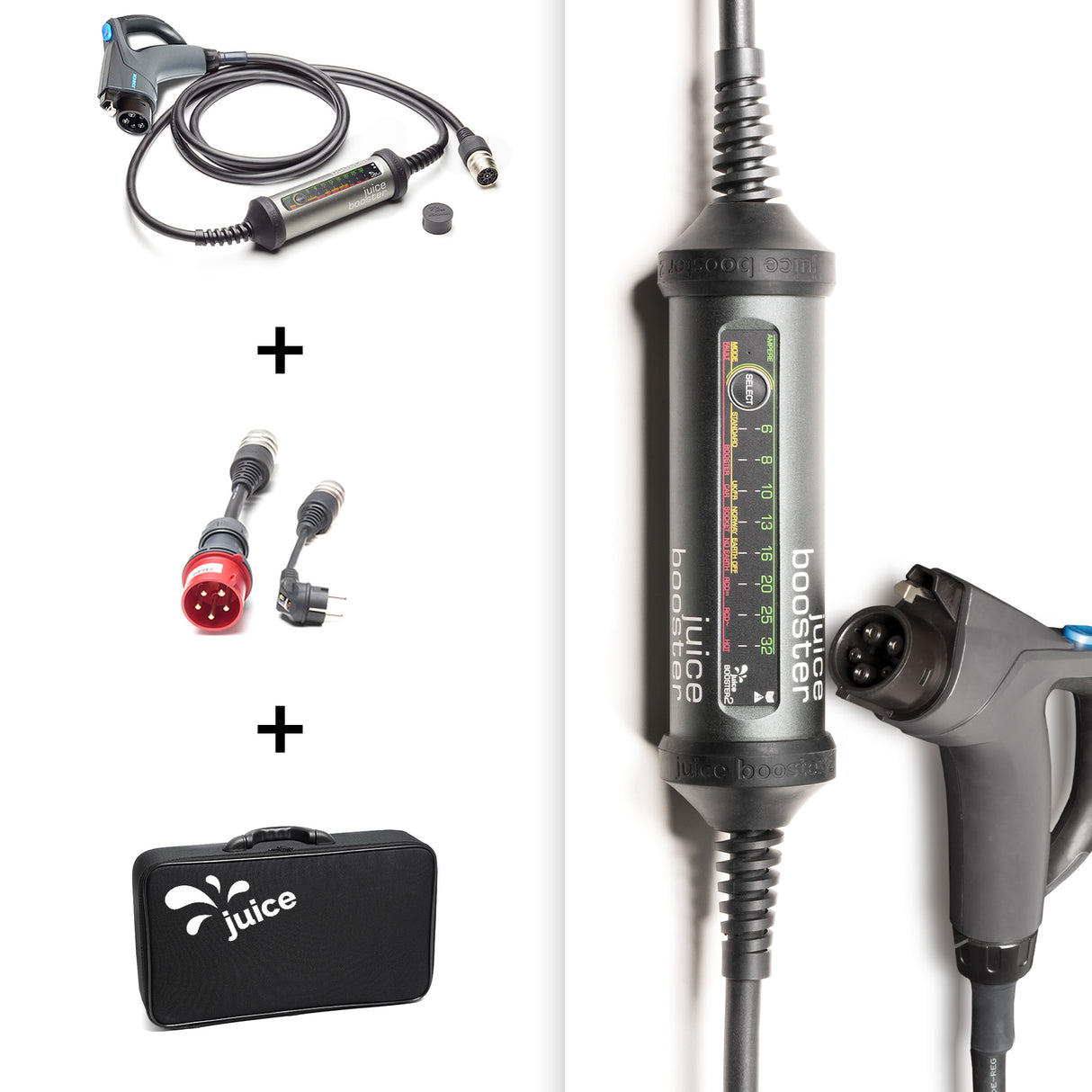

scope of delivery

1x JUICE BOOSTER 2 with Type 1 plug
1x adapter CEE32 / 400V
1x Schuko adapter (EU) with temperature sensor
1x carrying bag

Technical data

Dimensions:Diameter: 70 mm, Length: 225 mm

Weight:1.0 kg without cable, 4.1 kg with cable and plug

Perfomance:1.4 kW – 22 kW AC

Rated current:6 A to 32 A

Mains voltage:230V (1-phase) / 400V (3-phase)

Material, color:anodized aluminum, anthracite

Operating temperature:-30 °C to +50 °C

CE conformity:IEC 62752, 62196, 61851-1, Mode 2/3, EMC, RoHS

Protection class – FI – Safety:IP67 – RCD DC 6 mA, AC 30 mA – protective conductor, temperature monitoring

Coupling on the vehicle side:Type 1 (SAE J1772)

Cable length:3.1 m

Downloads and Manual
Product Sheet Quick Start Guide Manual TÜV CE Certification UKCA
SKU: EL-JB2T1E2
