JUICE BOOSTER 2 pro

Pro Basic Set Switzerland

CHF 2,619.00
Tax included Shipping calculated at checkout.

24-month warranty

Swiss design and development

Directly from the manufacturer

The JUICE BOOSTER 2 pro is based on the successful JUICE BOOSTER 2, the best-selling mobile 22 kW wallbox, and is specially designed for professional users and trained specialists. In addition to the adapters that can be changed on the mains side, the JUICE BOOSTER 2 pro also allows adapters to be changed on the vehicle side, which ensures maximum flexibility.

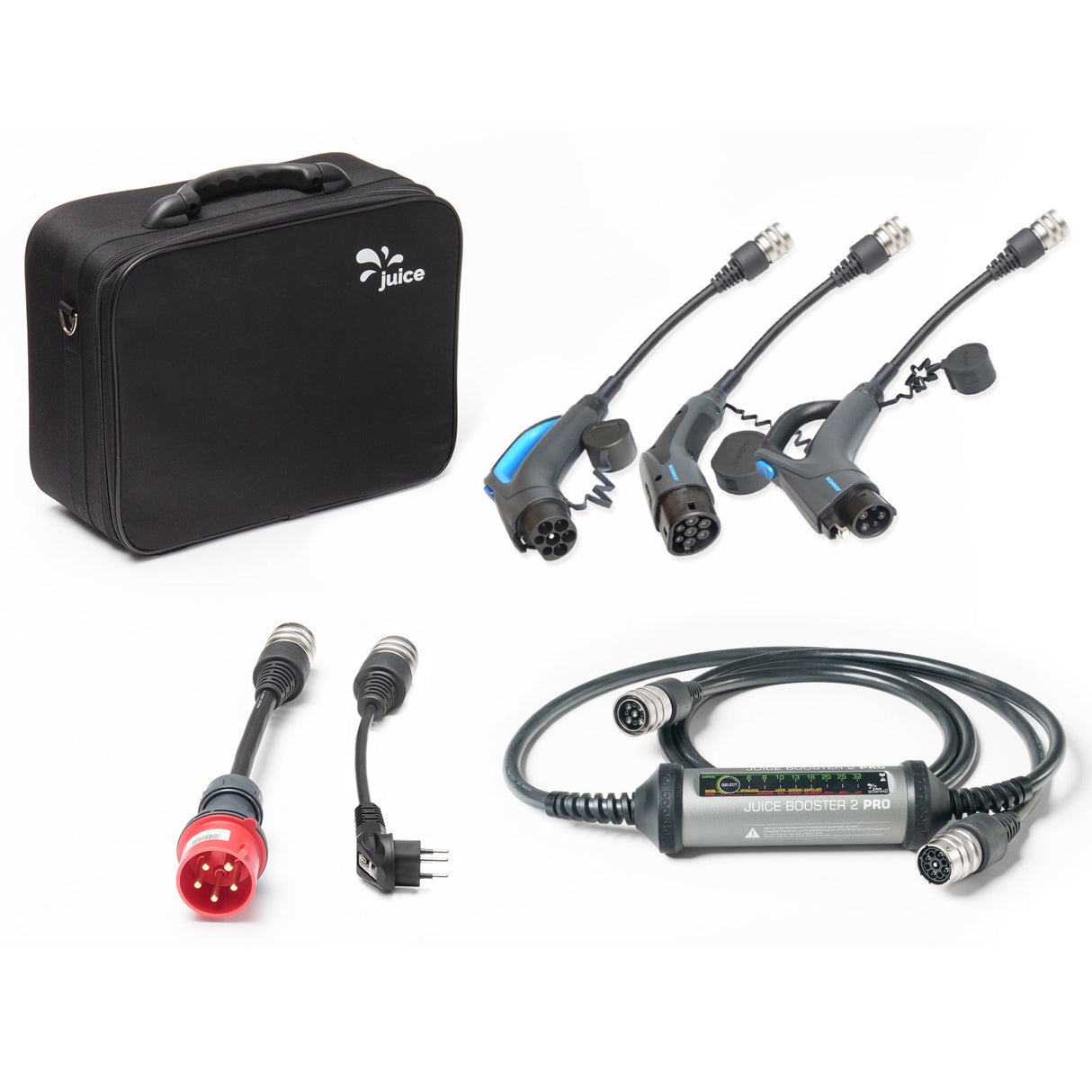

scope of delivery

1x JUICE BOOSTER 2 pro
1x mains-side adapter CEE32 / 400V
1x mains adapter T13 (CH) with temperature sensor
1x vehicle-side adapter Type 2
1x vehicle-side adapter Type 1
1x vehicle-side adapter type GB
1x carrying bag

Technical data

Dimensions:Diameter: 70 mm, Length: 225 mm

Weight:1.0 kg without cable, 3.2 kg with cable and plug

Perfomance:1.4 kW–22 kW AC

Rated current:6 A to 32 A

Mains voltage:230V (1-phase) / 400V (3-phase)

Material, color:anodized aluminum, anthracite

Operating temperature:−30 °C to +50 °C

CE conformity:IEC 62752, 62196, 61851-1, Mode 2/3, EMC, RoHS

Protection class:IP67, IK10

FI:RCD DC 6 mA, AC 30 mA

Security:protective conductor, temperature monitoring

Coupling on the vehicle side:Type GB (GB/T 20234.2) / Type 2 (EN 62196) / Type 1 (SAE J1772)

Cable length:3.1 m

Downloads and Manual
Product Sheet Quick Start Guide Manual Pro Manual
SKU: EA-JB2ProE1
