JUICE CHARGER me 3

JUICE CHARGER me3

€1.499 EUR
Tax included Shipping calculated at checkout.

24-month warranty

Swiss design and development

Directly from the manufacturer

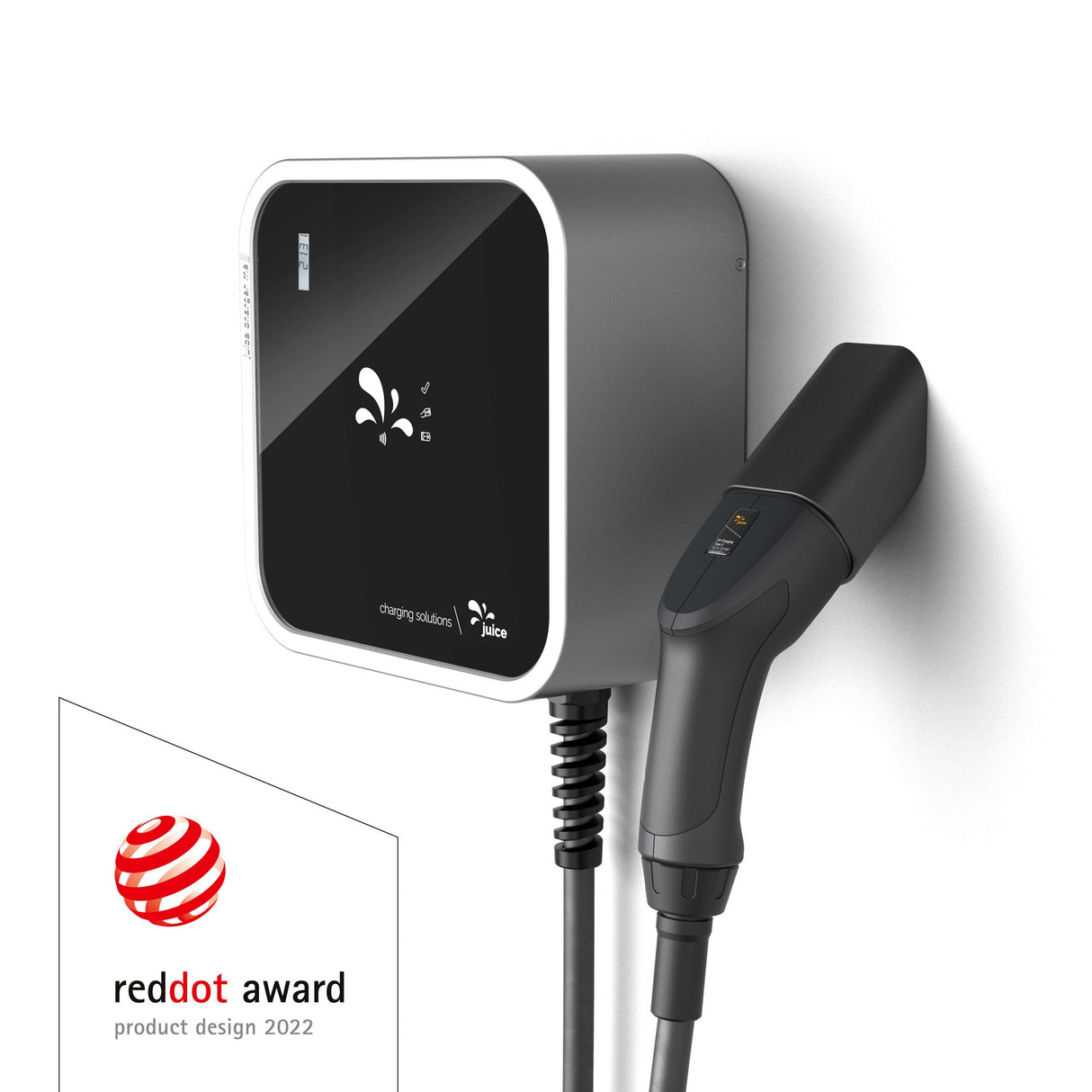

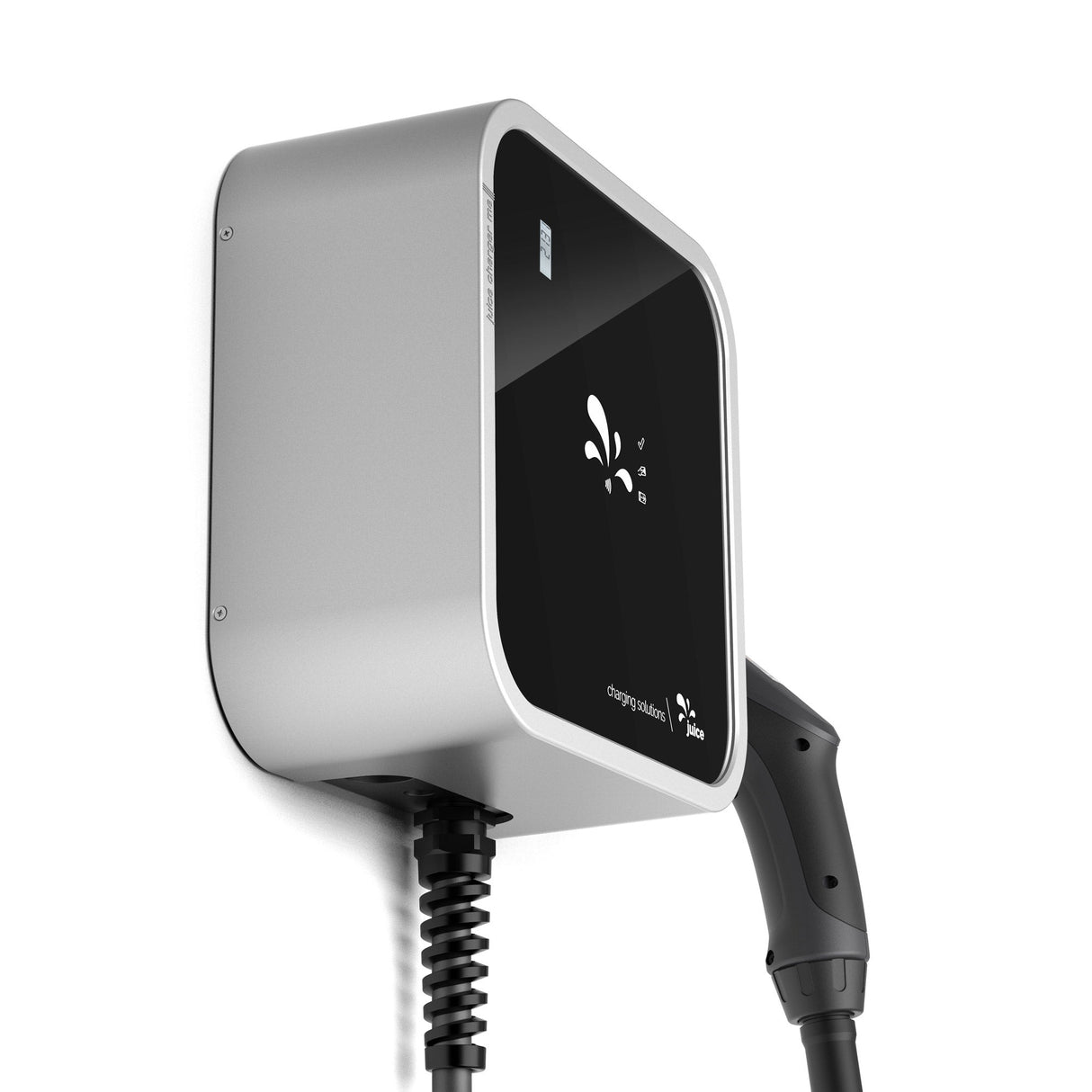

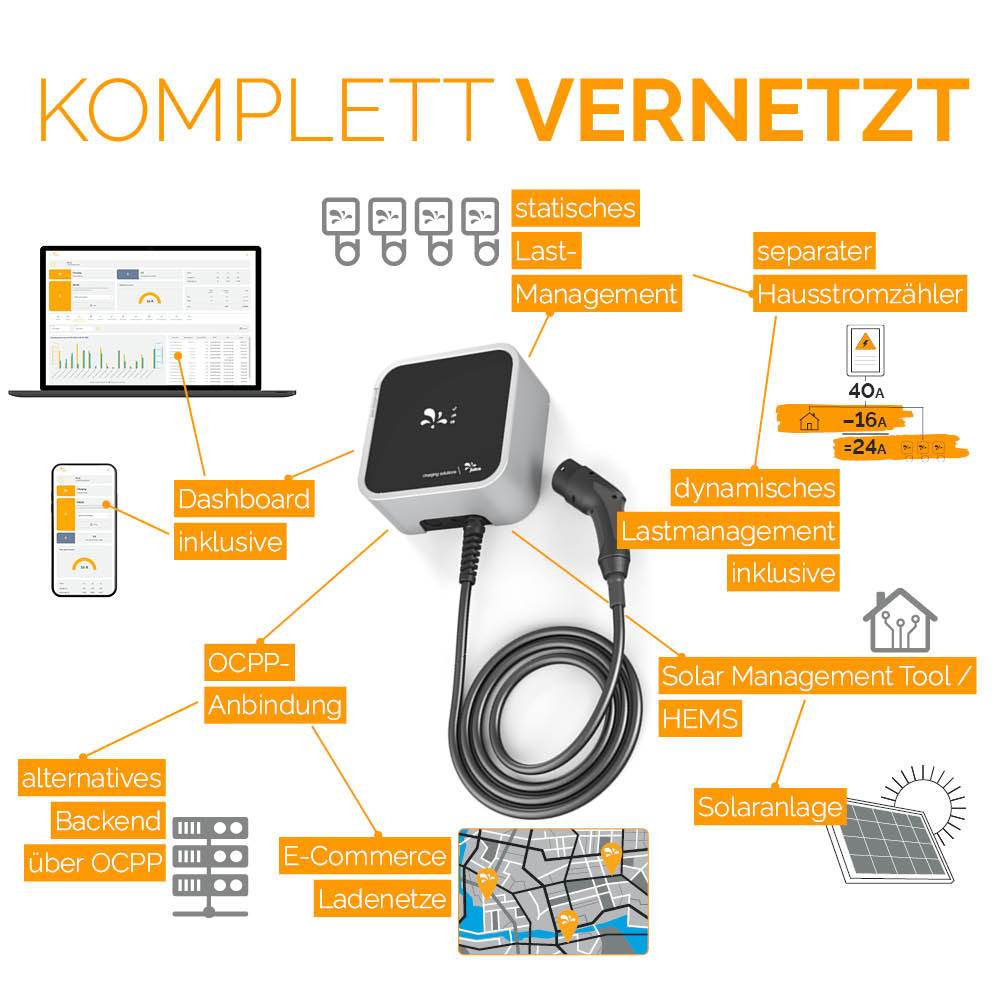

The JUICE CHARGER me 3 is a plug-and-play wallbox with MID meter that can be switched between 11 kW and 22 kW. The charging station is easy to install and can be connected to the Internet via WLAN or Ethernet. The charger can be integrated into a local or dynamic load management system with up to 250 charging stations, connected to a home energy management system (HEMS/solar system) or updated online.

specifications

Specification Icon 1
universally applicable as 11 or 22 kW version (switchable, regardless of the variant supplied)
Specification Icon 2
Load management for up to 250 stations is included free of charge
Specification Icon 3
completely waterproof and dustproof (IP67), impact resistant (IK10), durable due to high quality construction
Specification Icon 4
compatible with all existing and all new electric cars with Type 2 connection
Specification Icon 5
internal temperature sensor to reduce the charging current regardless of the ambient temperature
Specification Icon 6
load shedding via potential-free contacts
Specification Icon 7
Two pre-paired cards are included for unlocking via RFID
Specification Icon 8

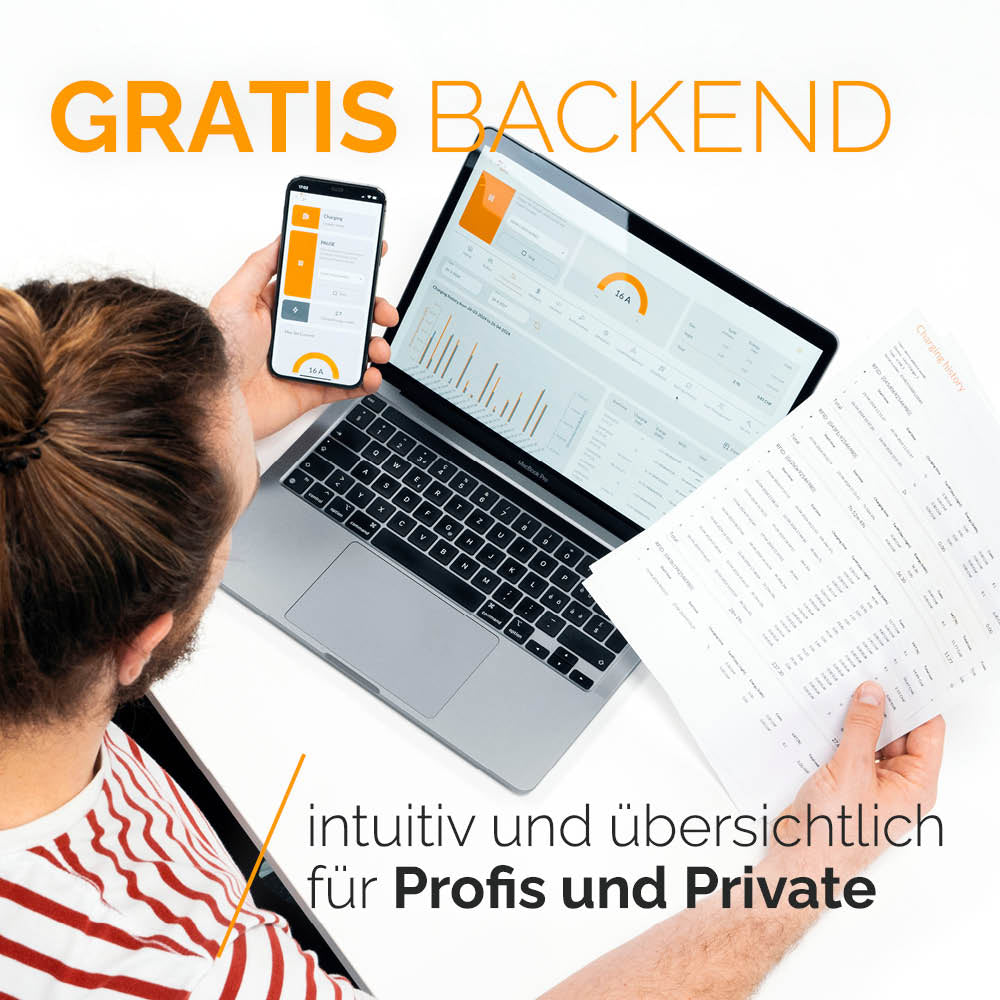

The intuitive dashboard allows the station to be controlled remotely
Specification Icon 9
A plug-in garage is included
Specification Icon 10
The dashboard can also be operated via the app on the mobile phone
Specification Icon 11
clear status display
Specification Icon 12
Fully networked charging station with full remote access
Specification Icon 13
With an external meter, dynamic load management can be created in no time
Specification Icon 14
powered by JUICE JET ENGINE

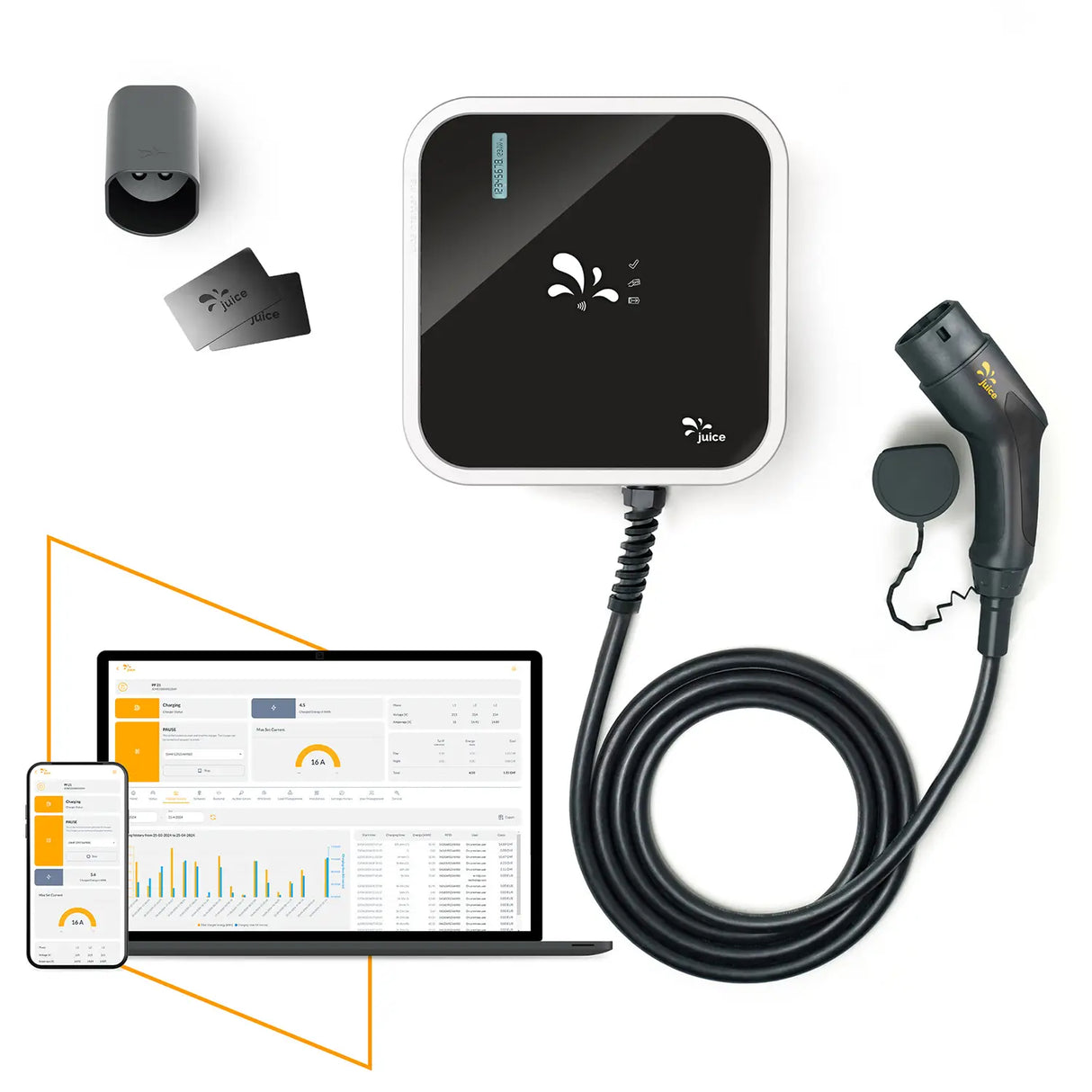

scope of delivery

1x JUICE CHARGER me 3
1x plug holder
2x RFID card

Technical data

Dimensions:280 x 280 x 125 mm

Weight:6.5 kg

Input current:230V, 6-32A (1-phase) AC or 400V, 6-32A (3-phase) AC

Output power:11 kW (16 A, 3-phase); adjustable to 22 kW (32 A, 3-phase)

FI protection:RCD DC 6 mA integrated

Communication:OCPP 1.5/1.6, Modbus TCP, EEBUS

Ethernet interface:(LAN, RJ45 connection)

Activation:RFID reader for access control (MIFARE Classic/Desfire)

RFID frequency:13.56 MHz

Charging/load management:Master and slave operation configurable (up to 250 units), load shedding via potential-free contacts

Security:Internal temperature sensor to reduce the charging current regardless of the ambient temperature

Protection class:IP67

Impact resistance:IK10

Operating temperature:-30° C to +50° C

Downloads and Manual

Product Sheet Installation Guide Manual CE Certification UKCA
SKU: EP-JCME3M-02
