JUICE DIRECTOR 2

€21.745 EUR
Tax included Shipping calculated at checkout.
Plug

Please feel free to contact us for an individual offer. Simply fill out the form below and we will get back to you immediately.

Ich stimme den allgemeinen Geschäftsbedingungen zu.

24-month warranty

Swiss design and development

Directly from the manufacturer

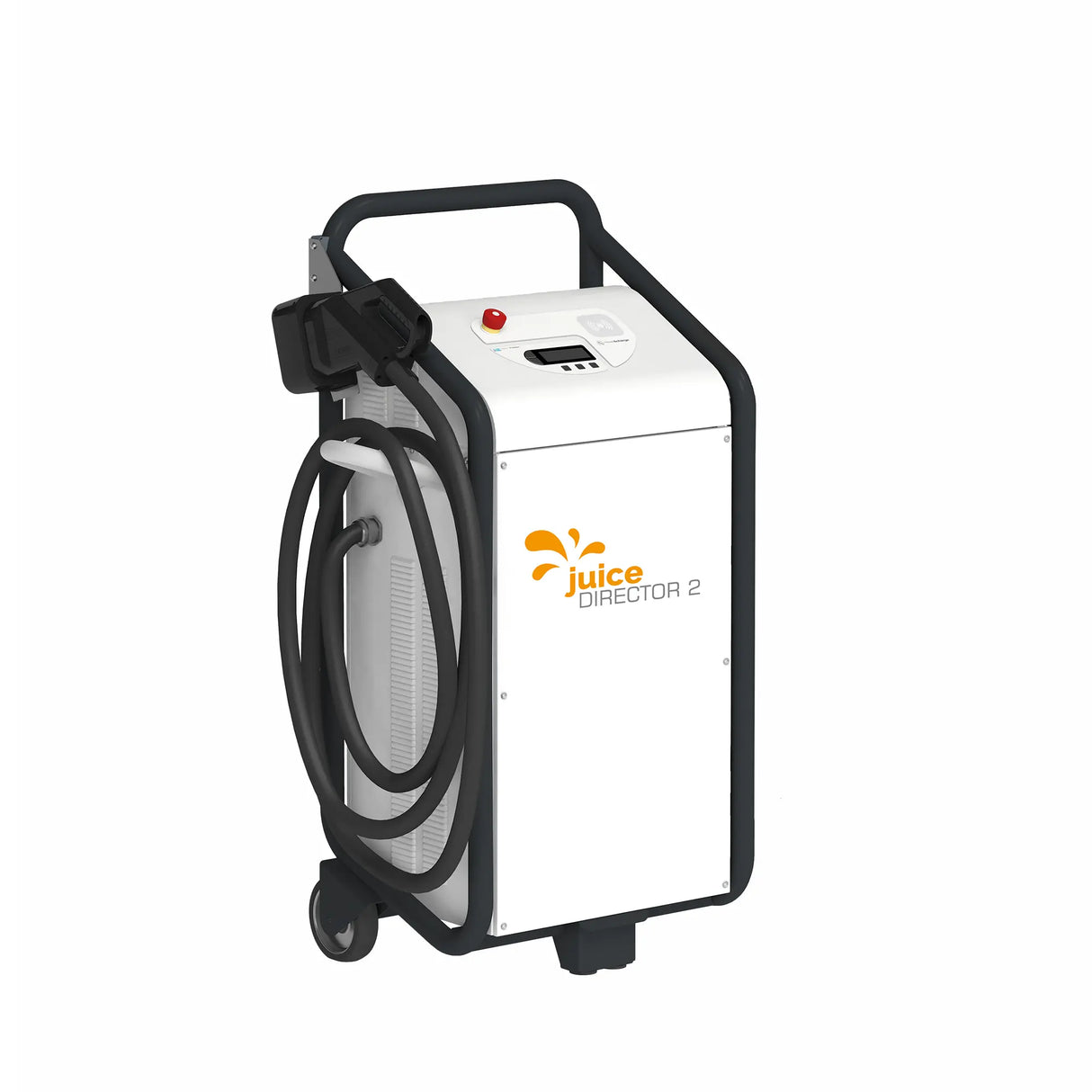

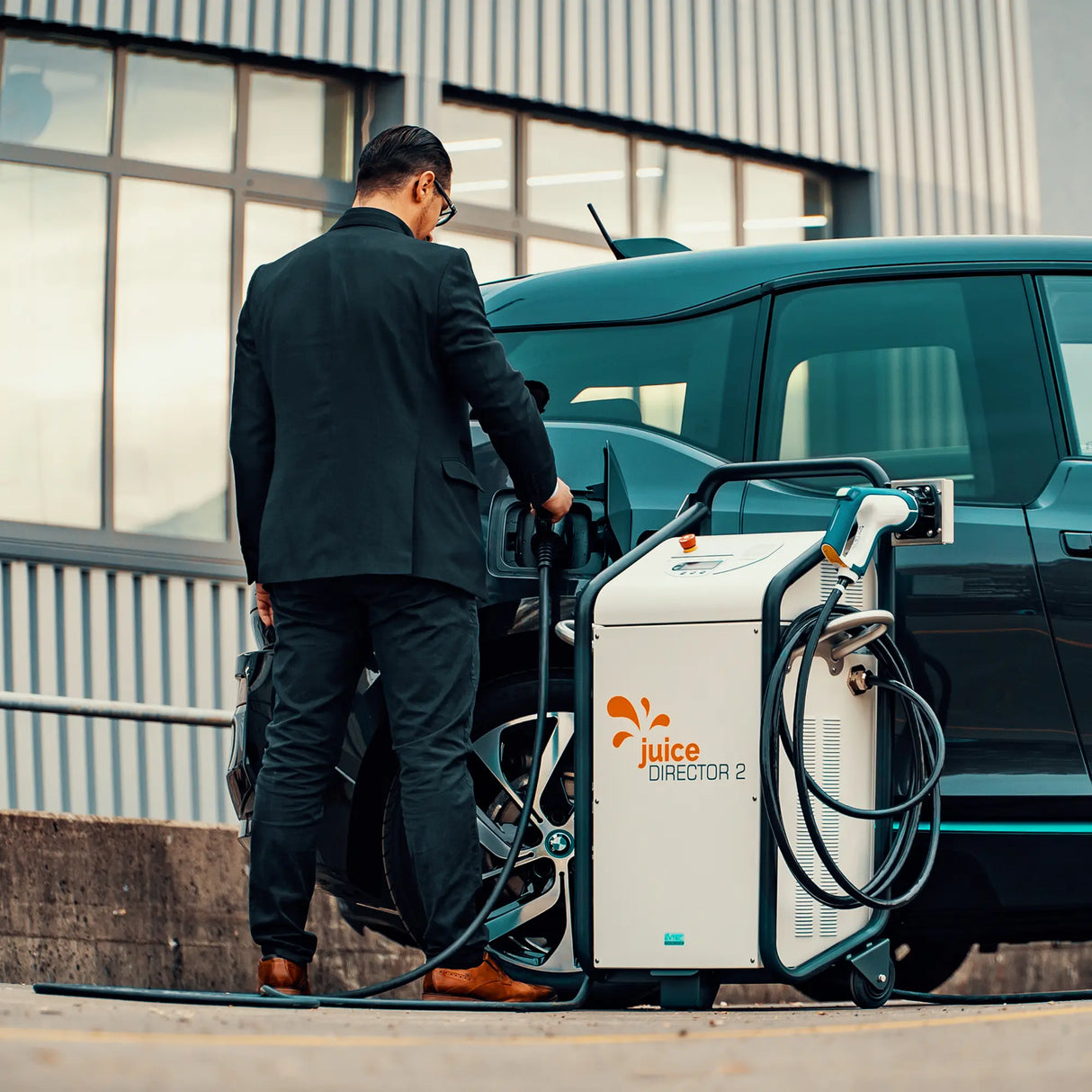

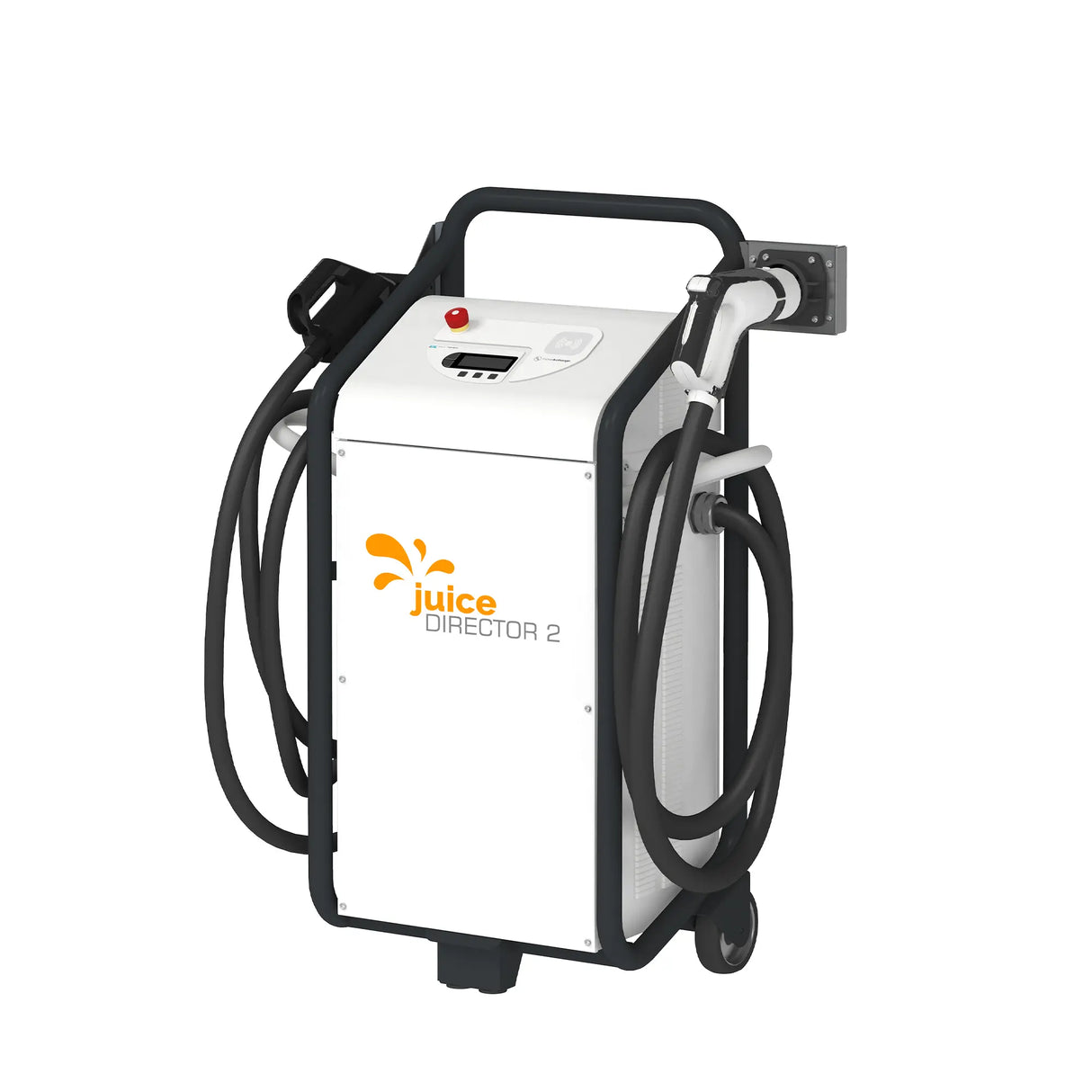

The JUICE DIRECTOR 2 is a mobile 22 kW fast charging station that enables charging without having to move the vehicle - ideal for workshops and valet parking, where there is often little space between vehicles. Thanks to robust housing protection and shock-absorbing rollers, it is particularly durable and safe to use.

specifications
Specification Icon 1
optimally protected by the robust steel frame
Specification Icon 2
Short-circuit protection, overcurrent protection, over- and undervoltage protection as well as insulation and earth conductor monitoring on the DC outputs
Specification Icon 3
equipped with extra shock-absorbing professional wheels
Specification Icon 4
optional AC Type 2 socket with residual current device, overcurrent protection and earth conductor monitoring
Specification Icon 5
air-cooled
Specification Icon 6
emergency switch within reach
Specification Icon 7
usable in the temperature range from -20 °C to +45 °C
Specification Icon 8
100% compatibility with all existing and new electric cars with CHAdeMO, CCS2 or Type 2 connection

scope of delivery

1x JUICE DIRECTOR 2

Technical data

Dimensions:Height: 1060 mm, Depth: 370 mm, Width: 770 mm

Weight:70 kg

Input current:3 x 400 V AC (± 10%) / 45 – 65 Hz / 32 A

Connection on the mains side:CEE 32

Output power DC:20 kW, 170 – 940 V DC, max. 50 A

AC output power:22 kW, 400 V AC, 32 A

Protection class – conformity:IP54 – EN 61851-23 / DIN 70121: ISO 15118

Combo 2, CHAdeMO 0.9.1Operating temperature:-20 °C to +45 °C

Administration:OCPP 1.5 / 1.6, RFID activation

Communication:Ethernet, GSM / GPRS / UMTS or Powerline

Couplings:CCS2 cable (IEC 62196-3), on request also with CHAdeMO coupling (JEVS G105) and/or Type 2 socket (IEC 62196)

Material, color:robust full metal housing white, housing protection anthracite, cable black

Downloads and Manual
Product Sheet Manual CE Certification
SKU: EL-JD2V2
