JUICE ULTRA 2

€85.000 EUR
Tax included Shipping calculated at checkout.
Size

Please feel free to contact us for an individual offer. Simply fill out the form below and we will get back to you immediately.

Ich stimme den allgemeinen Geschäftsbedingungen zu.

24-month warranty

Swiss design and development

Directly from the manufacturer

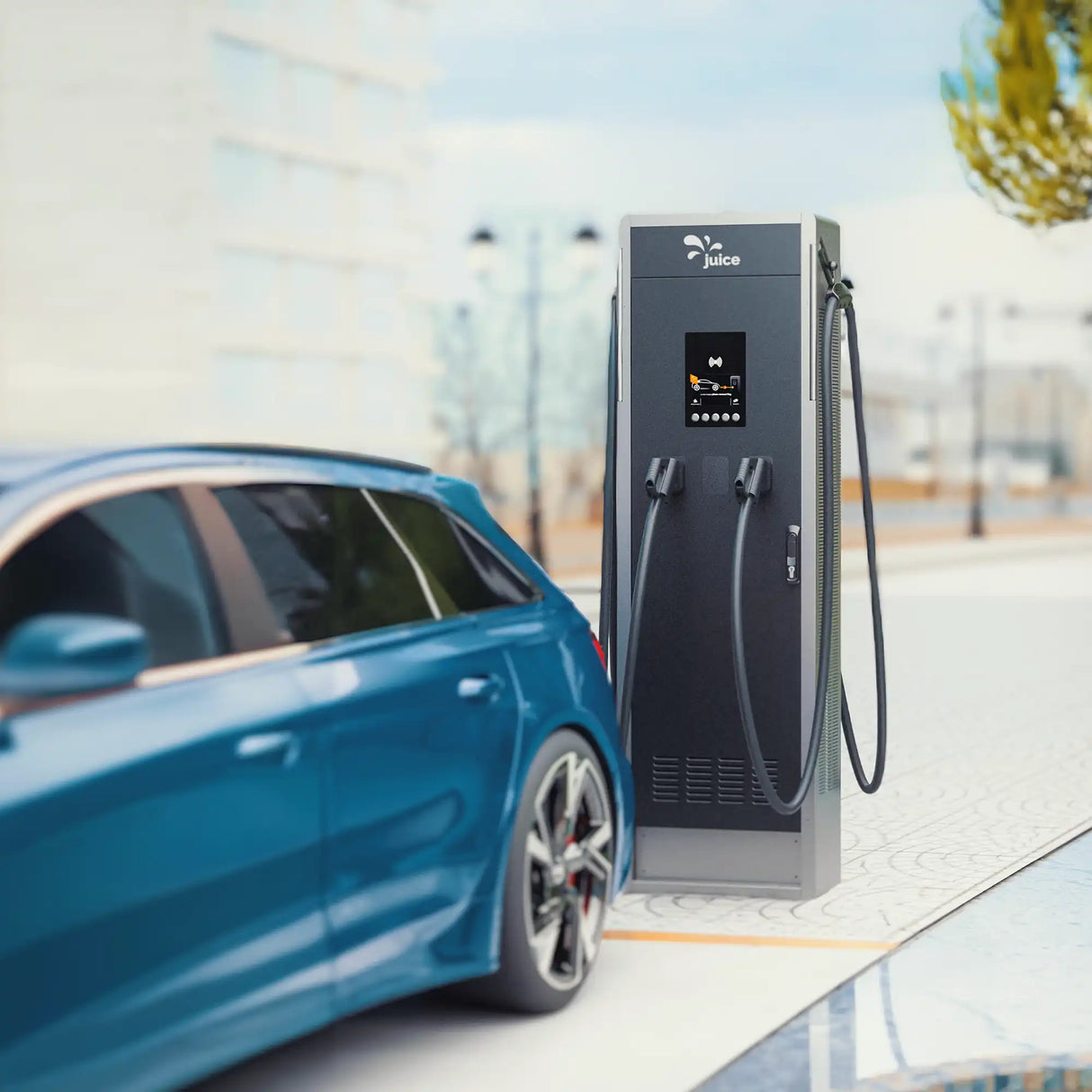

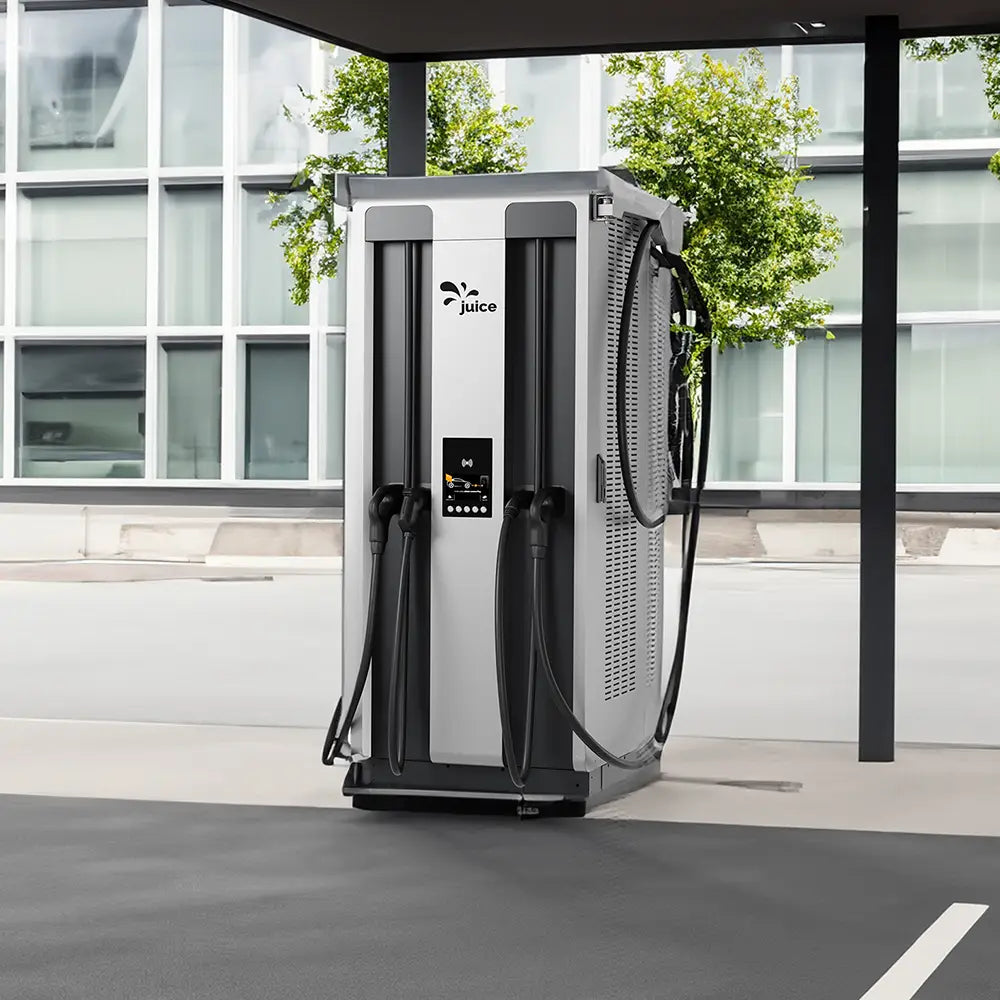

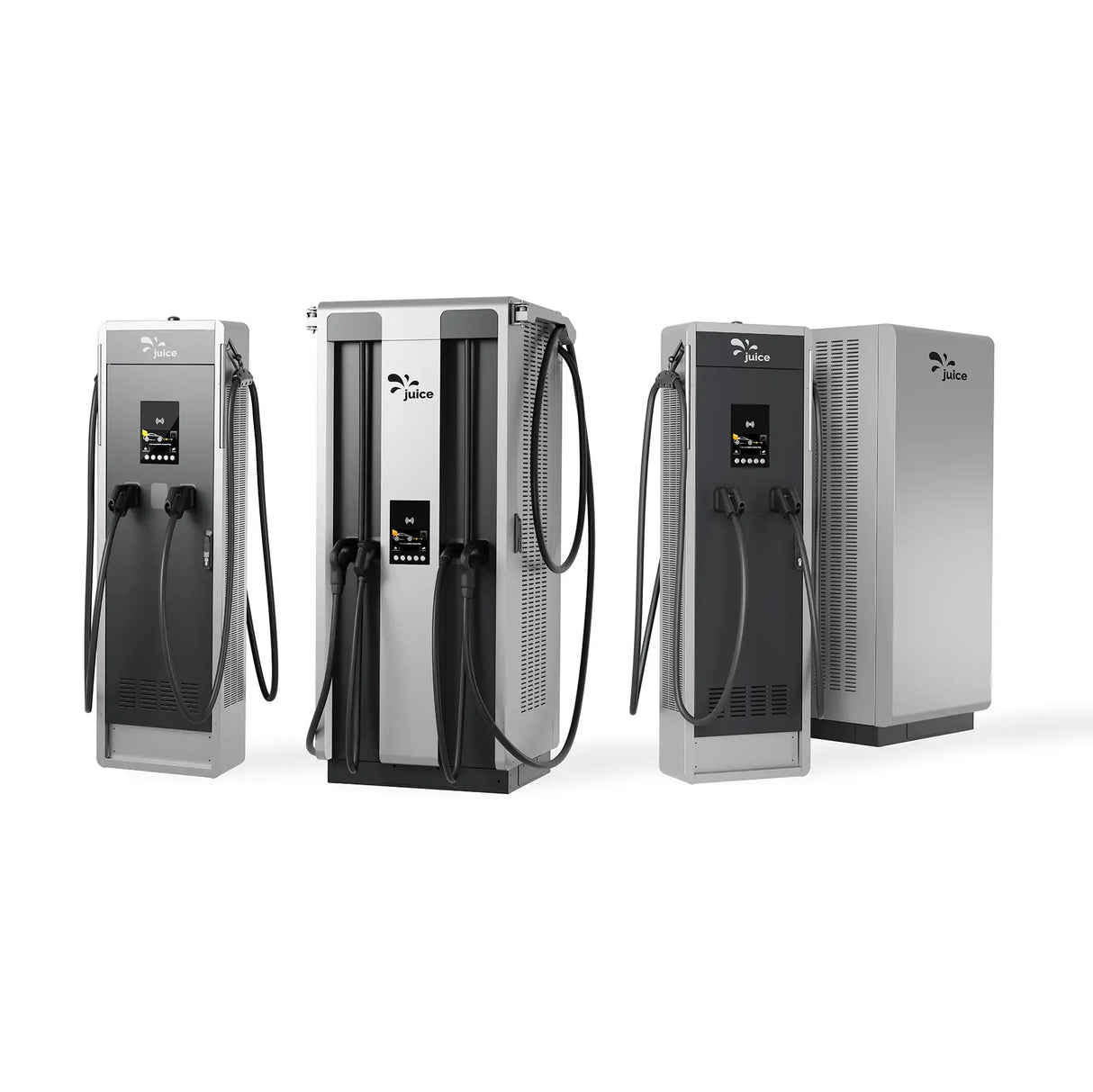

The JUICE ULTRA 2 is a flexible DC fast charging station for electric cars and electric commercial vehicles, available in three different versions. The high-performance charger (HPC) can be modularly expanded with up to 500 kW charging power.

specifications
Specification Icon 1
super-fast charging at 2 DC charging points (CCS2) simultaneously with up to 500 kW (2 × 250 kW)
Specification Icon 2
Dynamic load management monitors and controls energy distribution in real time.
Specification Icon 3
additional AC socket for charging a third vehicle with up to 22 kW
Specification Icon 4

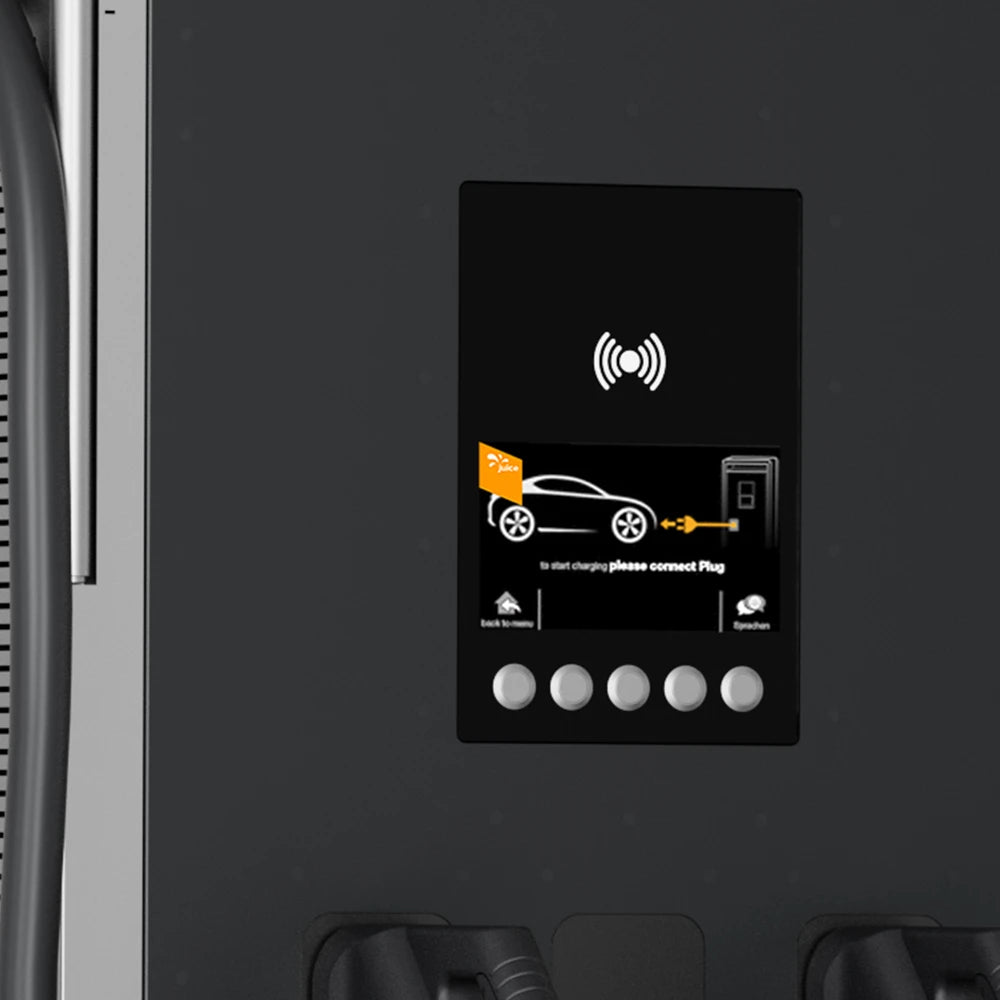

An easy-to-read 7” screen ensures excellent usability.
Specification Icon 5
vandal-proof (IK10) and protected against dust and splash water (IP54)
Specification Icon 6
DC safety: under-/overvoltage protection, overcurrent protection, short-circuit protection, grounding protection, insulation monitoring, ground conductor monitoring
Specification Icon 7
usable in the temperature range from -20 °C to +45 °C
Specification Icon 8
AC safety: residual current protection (type B), overcurrent protection, earth conductor monitoring
Specification Icon 9
RFID reader for activation with charging cards (compatible with all common providers, including eCarUp, Move, swisscharge)
Specification Icon 10
OCPP, ISO 15118 (Plug and Charge), Ethernet, GPRS, UMTS and LTE

scope of delivery

1x JUICE ULTRA 2

Technical data

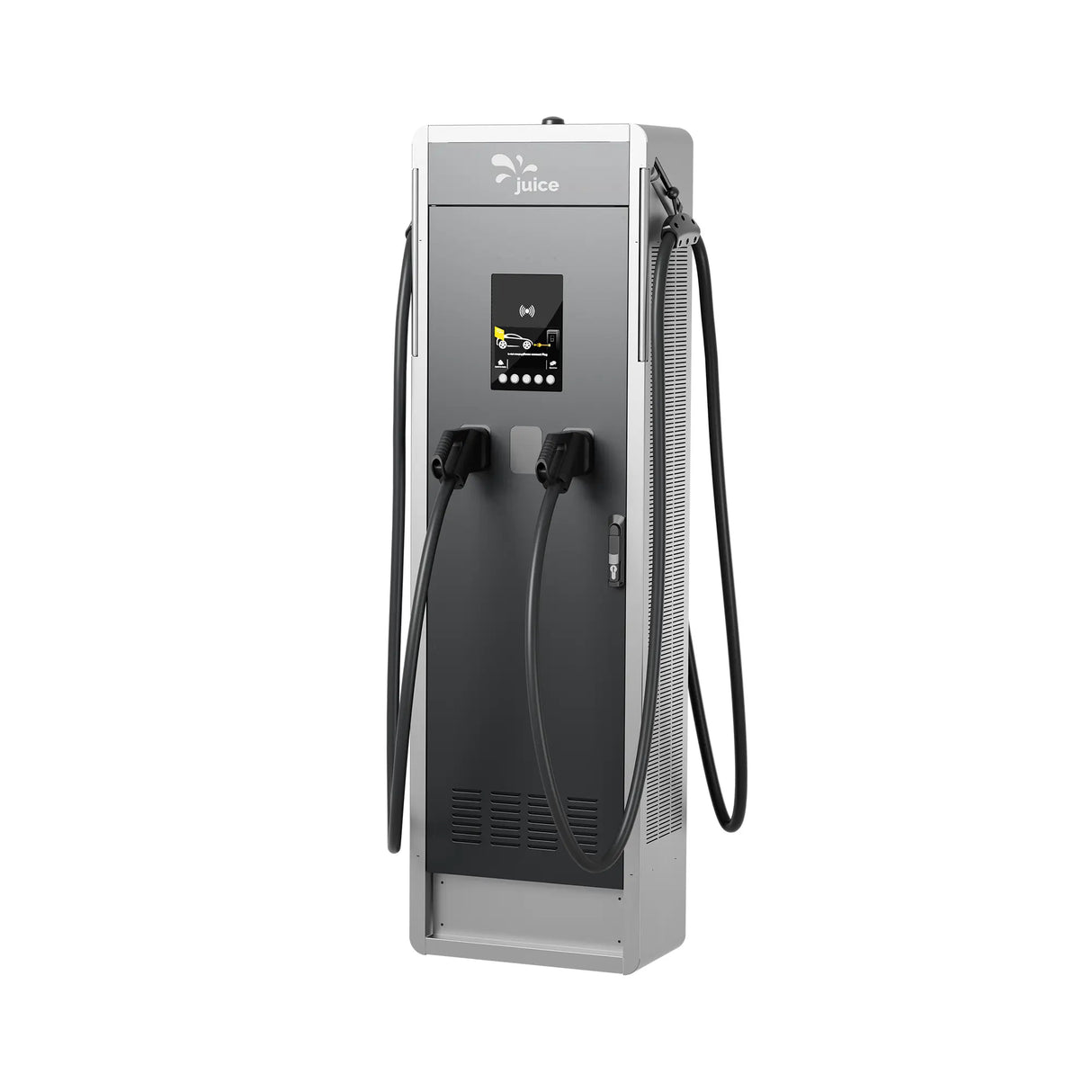

Dimensions slim (width x height x depth):853 x 2079 x 840 mm

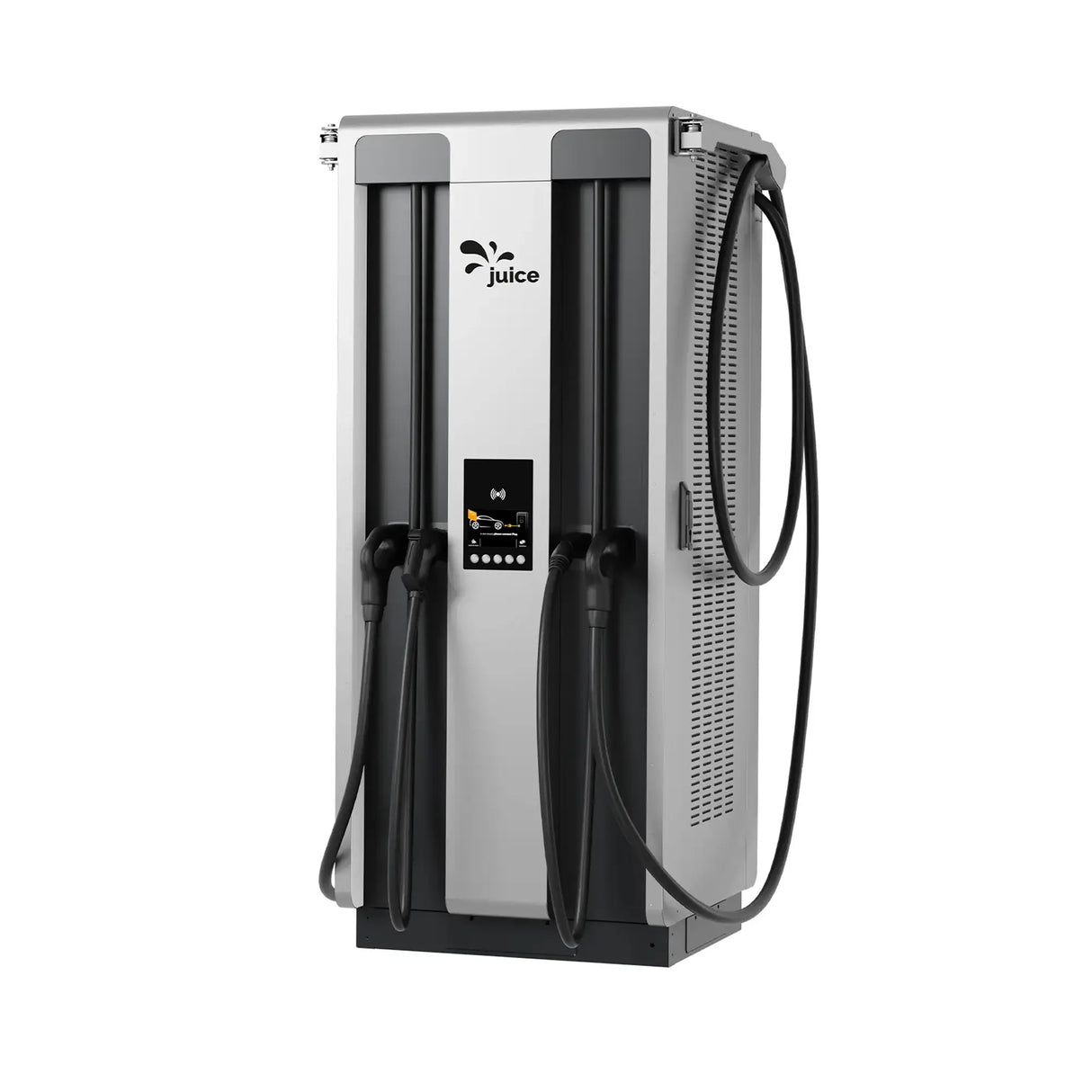

Dimensions large (width x height x depth):590 x 1900 x 300 mm

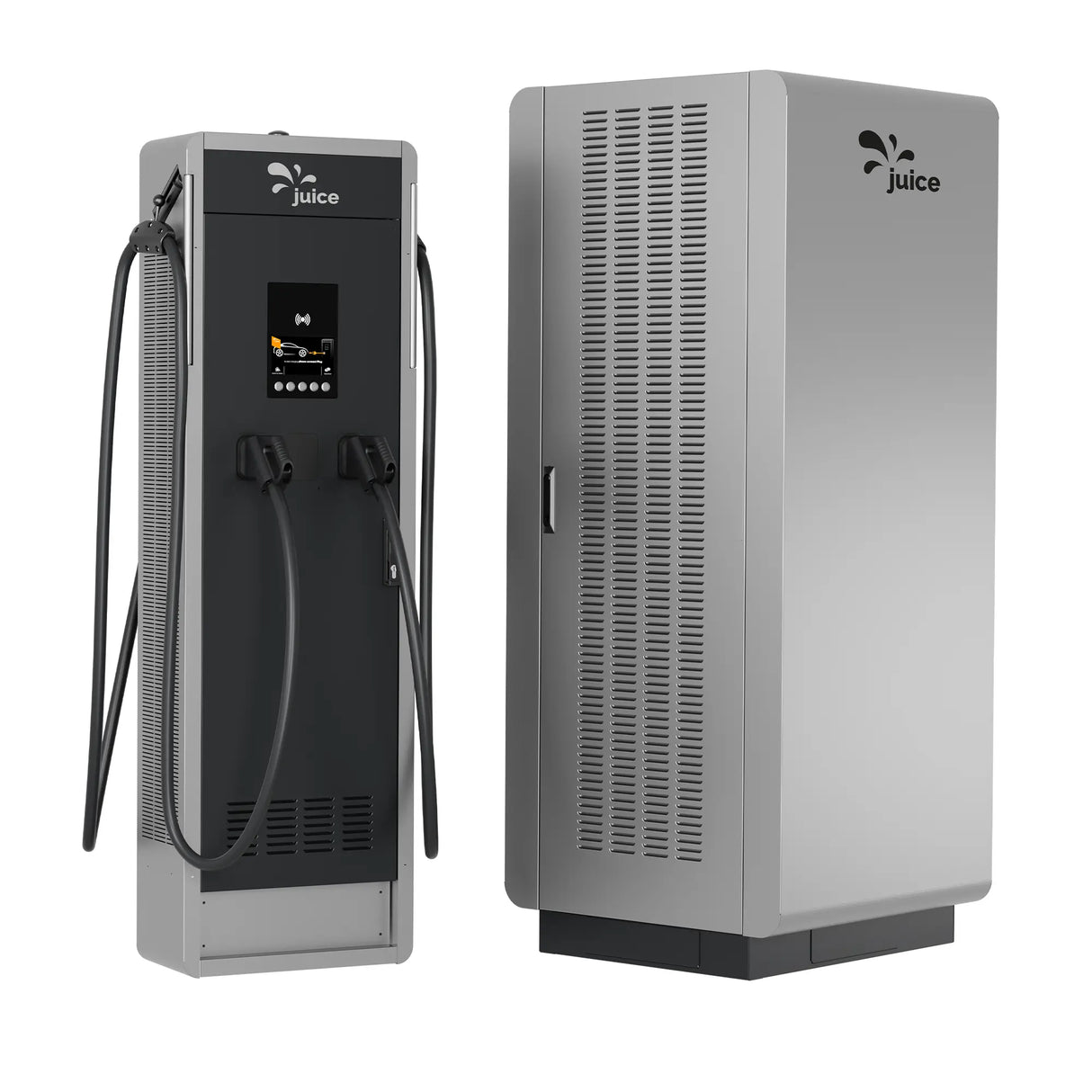

Dimensions hub (width x height x depth):590 x 1900 x 300 mm

Input current (AC mains connection):3 x 400 V (± 10%) / 45-65 Hz or 50/60 Hz

AC input current:176A (DC only), 200A (DC & AC), 585A, 488A or 585A

DC output current:1 x 275 A or 2 x 160 A, 1 x 500 A or 2 x 480 A

DC output voltage:150–920 V

DC charging power (max.):100 kW, 500 kW

AC charging power (max.):22 kW

Efficiency:94.5% (at 50% < performance)

Protection class:IP54 and IK10

Load shedding:via potential-free contact

Conformity – EMC:EN 61851-1, -22, -23; EN 62479; EN 55011 + A1 – EN 61000-6-1, -2, -3, -4

Operating temperature:-20 °C to +45 °C

RFID system:ISO/IEC 14443A, ISO7816, MIFARE Ultralight®, NTAG203, MIFARE Mini, MIFARE Classic® 1K, MIFARE Classic® 4K, FM11RF08

Communication:OCPP 1.5, OCPP 1.6, OCPP 2.0 (ready), JSON / SOAP, Ethernet port, GPRS, UMTS, LTE; DIN 70121, ISO 15118

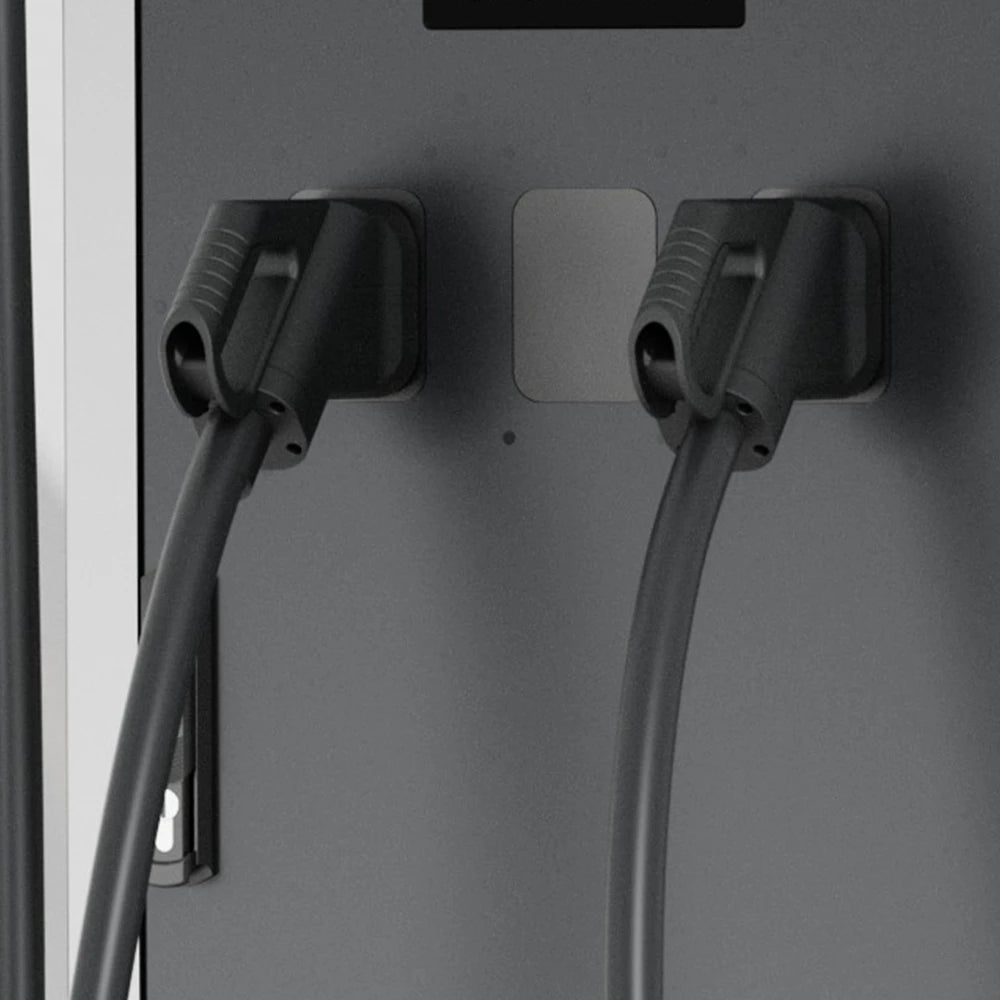

Couplings:2 x CCS2 (IEC 62196-3), on request also with CCS1 or CHAdeMO and additional AC Type 2 (socket)

Cable management:7.1 m with cable retrieval system, 5.8 m with cable arm, 7.1 m with cable retrieval system

Material – Color:robust full metal housing – interior: anthracite, frame: light grey; cable black

Downloads and Manual
Product Sheet Manual
SKU: EL-JUCC2
