JUICE ULTRA 2 battery

battery

Please feel free to contact us for an individual offer. Simply fill out the form below and we will get back to you immediately.

Ich stimme den allgemeinen Geschäftsbedingungen zu.

24-month warranty

Swiss design and development

Directly from the manufacturer

The JUICE DIRECTOR 2 is a mobile and flexible 22 kW fast charging station and is ready for use in just two steps: simply connect it to the mains, plug in the vehicle and charge it with direct current. The fast charging station is IP54 rated for outdoor use, making it a reliable all-rounder. Areas of application include workshops, private garages or showrooms (for test drives). The JUICE DIRECTOR 2 offers unlimited application possibilities.

Thanks to the robust housing protection, the JUICE DIRECTOR 2 is safe at all times. The shock-absorbing rollers also protect the technology of the quick-charging station and ensure a particularly long service life. Users are also spared back pain because the handle is at the ergonomically correct height. The CCS2 plug is of high quality and break-proof. The JUICE DIRECTOR 2 can also be optionally expanded to include a CHAdeMo connection and a 22 kW AC socket.

If desired, it is possible to integrate activation via RFID to prevent unauthorized charging. The JUICE DIRECTOR 2 also has an emergency switch.


The JUICE DIRECTOR 2 is …
... has already been successfully tested. Including the Jaguar I-PACE, BMW i3, Hyundai Ioniq electric, Opel Ampera-e, VW e-Golf, Mitsubishi Outlander PHEV, VW e-up! and many more.
... robust, thanks to a stable housing with specially developed housing protection for uncompromising outdoor use.
... ready for use straight away. The JUICE DIRECTOR 2 does not need to be installed - just place it down, plug it in and charge it with 100 percent mobile direct current without any further installation.
… can be used anywhere, also suitable for outdoor use (IP54).
... can be expanded individually. An AC Type 2 socket and a CHAdeMo connection can also be integrated if required.

specifications
Specification Icon 1

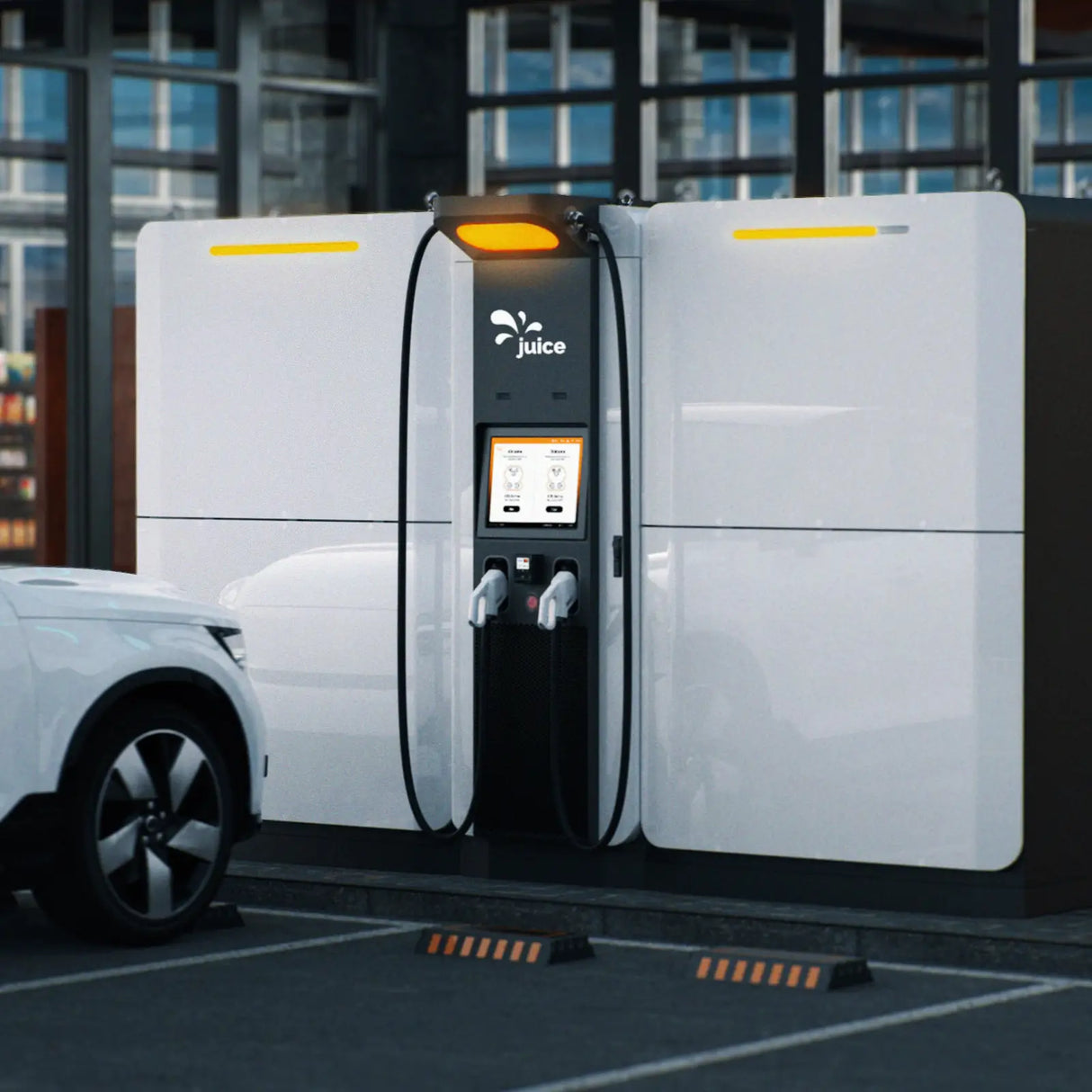

super-fast charging at 2 charging points simultaneously with up to 210 kW (60 kW + 150 kW)
Specification Icon 2
flexible application possibilities through intelligent load distribution and modular expandability of the battery capacity
Specification Icon 3

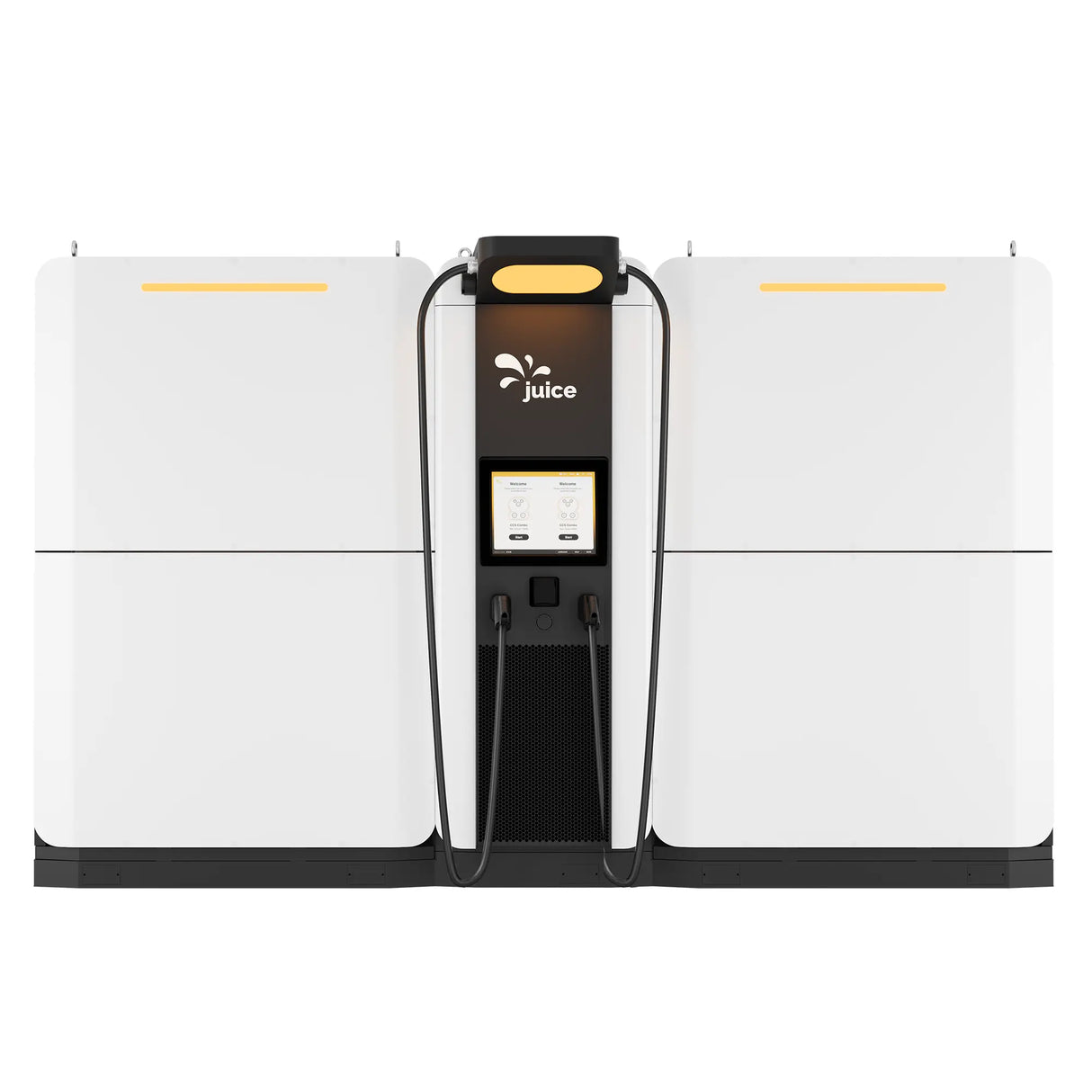

Battery capacity up to 466 kWh (or 2×233 kWh; of which 2×208 kWh usable)
Specification Icon 4
helps save money by avoiding peak loads and integrating solar energy
Specification Icon 5
dustproof and protected against water jets (IP65)
Specification Icon 6
a 19” touchscreen ensures maximum user-friendliness
Specification Icon 7
operational in the temperature range from -25 °C to +55 °C (power reduction from 45 °C)
Specification Icon 8
Under-/overvoltage protection, overload protection, short-circuit protection, grounding protection, lightning protection, overheating protection, emergency stop, fire alarm system, emergency switch, flood protection
Specification Icon 9
compact, space-saving design
Specification Icon 10
has GSM, LTE, LAN, WLAN

scope of delivery

1x DC fast charging station unit
1x or 2x battery unit

Technical data

Technical parameters
Product specifications:Type: DC fast charging station
Dimension:W 2.3 m, D 0.8 m, H 2.25 m (at 466 kWh: W 3.85 m)
Installation:floor installation
Material:high-strength steel alloy
Color:White, weather-resistant coating
Weight:3000 kg (at 466 kWh: 5900 kg)

energy storage system

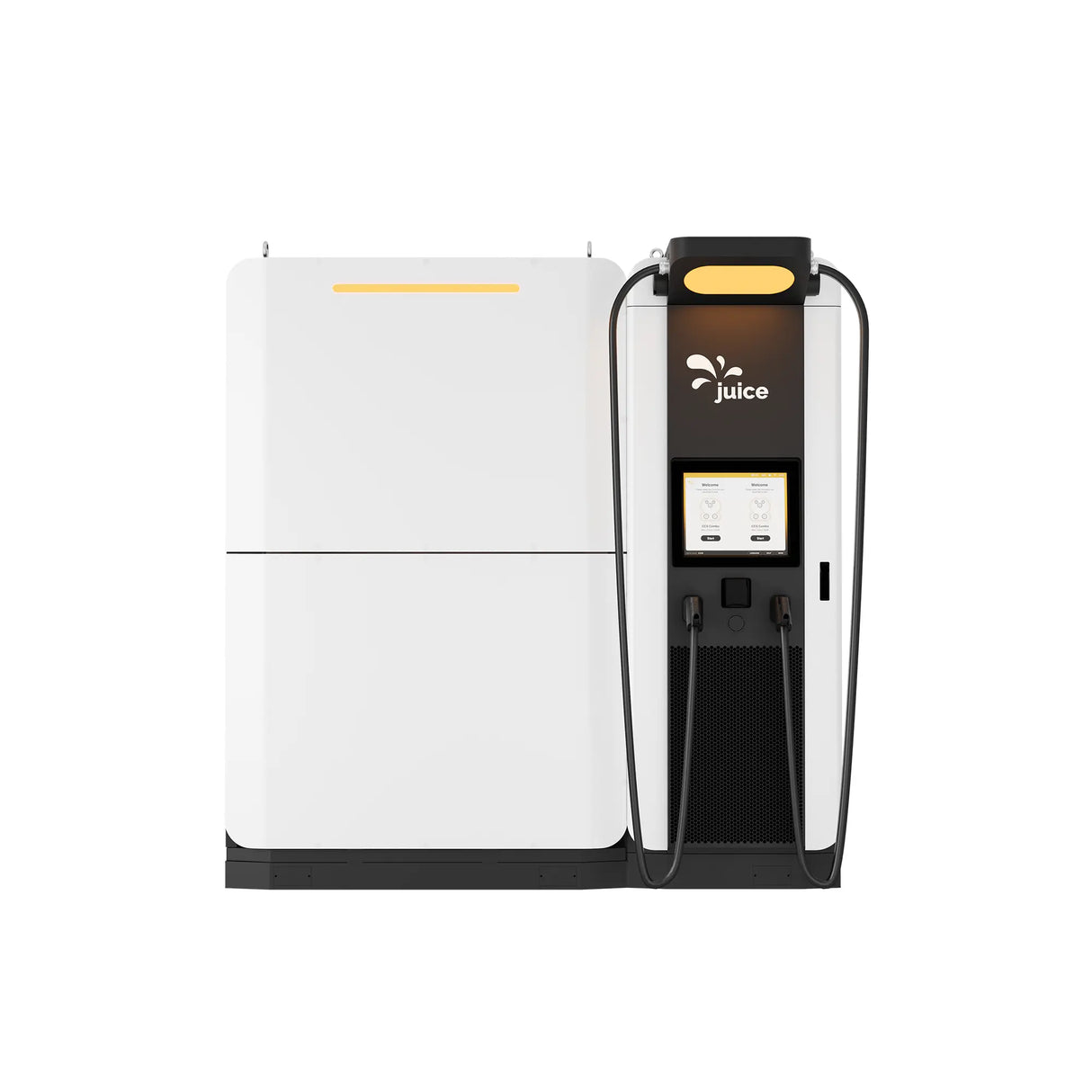

Battery capacity:233 kWh / 2×233 kWh
Usable battery capacity:208 kWh / 2×208 kWh

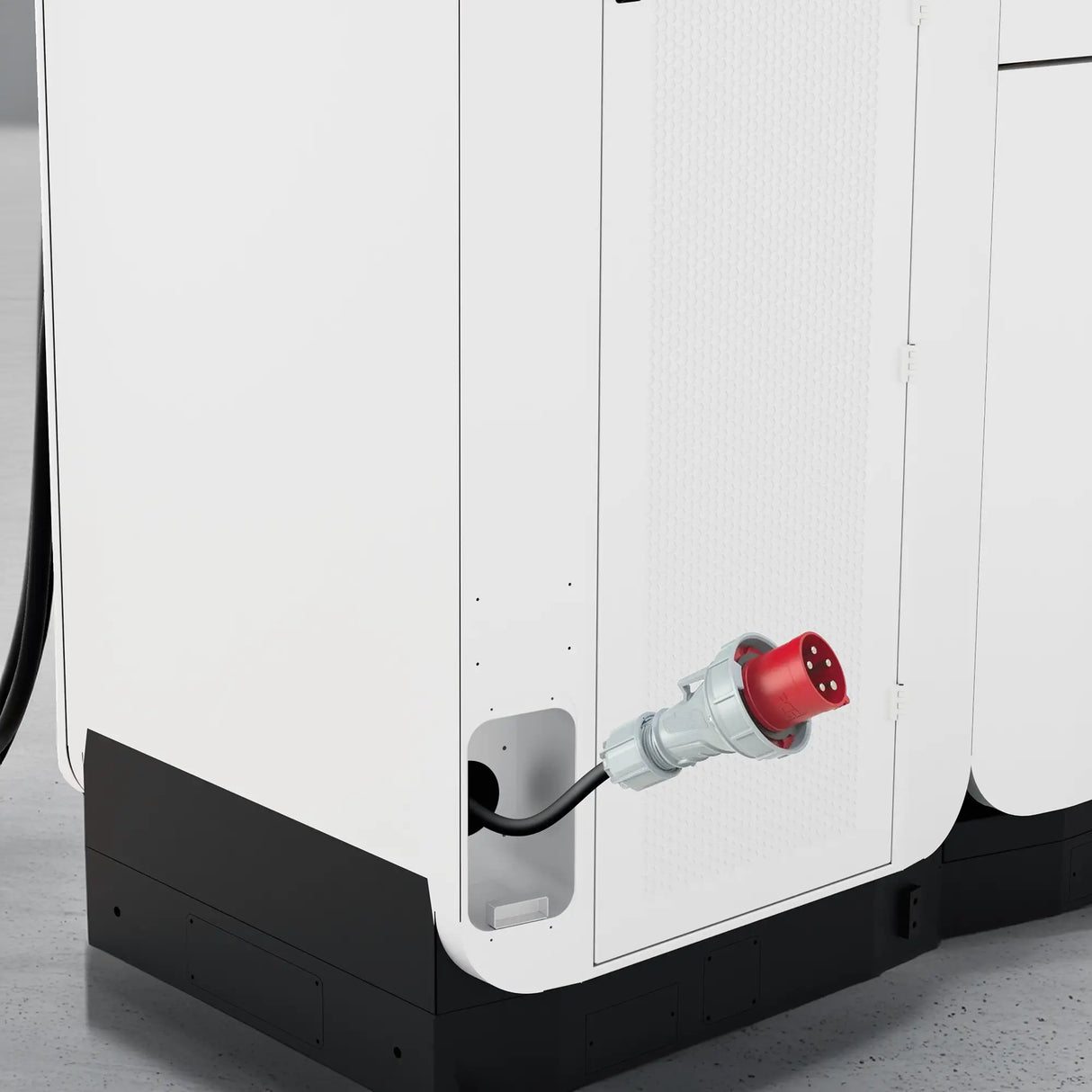

Max. charging power into the battery:CEE32: 22 kW / CEE63: 44 kW / CEE125: 60 kW
Battery charging coefficient:≤ 0.5 C
Battery discharge coefficient:≤ 1 C
Battery efficiency:≥ 94.5% at rated power
IP protection class:IP65

fast charging station
charging points:2
Power distribution:Intelligent load distribution across 2 charging points
charging power:DC max. 150 kW + 22 kW/44 kW/60 kW ≅ 170 kW/190 kW/210 kW
Cable:CCS2, 5m, 200A (250A optional)
Output voltage:300 V ~1000 V
Efficiency:≥ 96.5%
Performance counter:

  • AC side:1 AC meter
  • DC side:2 pcs. DC meters (readable from the outside with viewing window)
    Cooling system:
  • Battery:liquid-cooled
  • Performance modules:air-cooled
  • Cable:air-cooled
    Screen:Display size: 19 inches
    Payment system:RFID, credit card terminal
    Network connections:GSM, LTE, LAN, WLAN
    Communication:OCPP 1.6 J

environmental conditions
Application area:Outdoor
Temperature range:-25 °C - 55 °C (over 45 °C power reduction)
Humidity:≤ 95 % without condensation
Altitude:≤ 2000 m
Noise development:≤ 75 dB at rated power
EMC:Class B
Medium:No explosive, dangerous, toxic or harmful gases
Noise:No strong vibrations or electromagnetic interference

entrance and exit
Input voltage range:3-phase 400 VAC ±15 %
residual current circuit breaker:250 A, 4 P, Type A
Input frequency:50 Hz ±1 Hz
Output frequency range (reduced):150 VDC - 300 VDC
Output frequency range (constant):300 VDC - 1000 VDC
charging power:150 kW/170 kW/190 kW/210 kW
charging current:200A/250A CCS2 continuous

Security
IP protection class:IP54
Safety/protection features:Under-/overvoltage protection, overload protection, short-circuit protection, grounding protection, lightning protection, overheating protection, emergency stop, fire alarm system, emergency button, flood protection

standards
Battery:IEC 62619, IEC62933
System:IEC 62619, IEC61851, IEC62477, ISO15118

Downloads and Manual
Product Sheet Manual CE Certification
